- Professional Audio Tool – Precision AC impedance meter with 10Hz–20kHz range for accurate system diagnostics and tuning.
- Exclusive Auto-Lock Feature – Automatically detects impedance peaks and valleys for fast, reliable measurements.
- All-in-One Solution – Measure impedance, set crossovers, tune enclosures, and verify driver T/S parameters with one device.
- Versatile Testing – Works on speakers, RCA cables, wire runs, and passive crossover networks for complete system analysis.
- Smooth Frequency Control – Super smooth frequency knob with selectable Low, Mid, High ranges for fine adjustments.

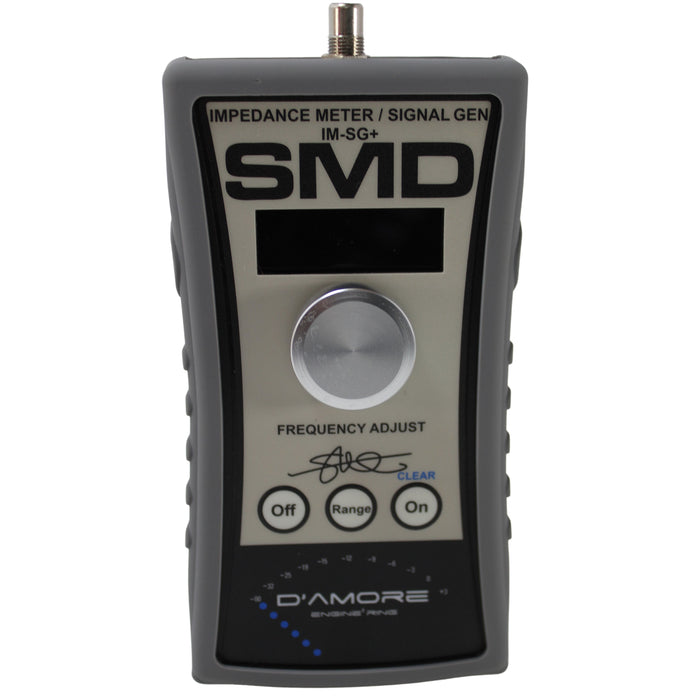

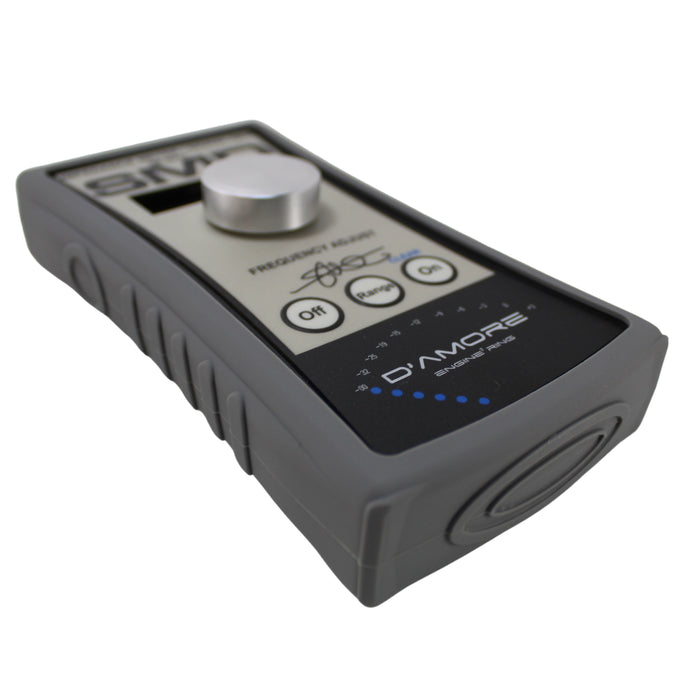

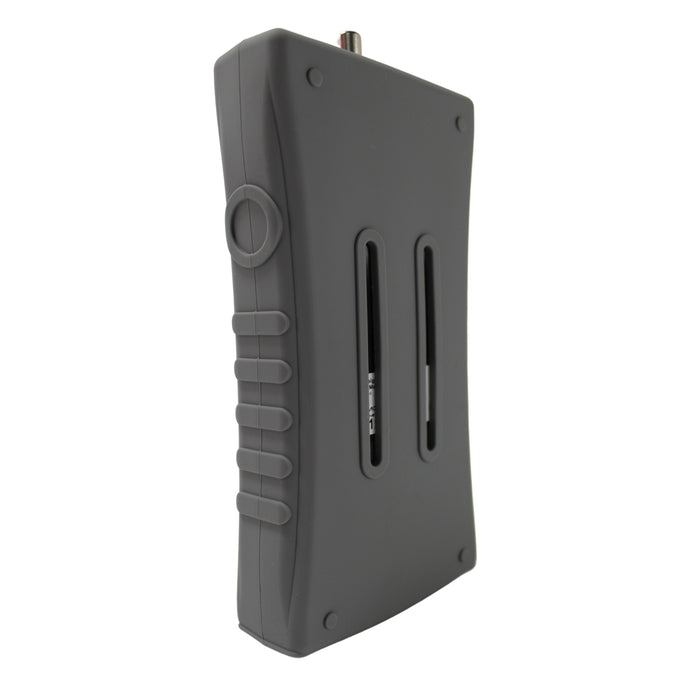

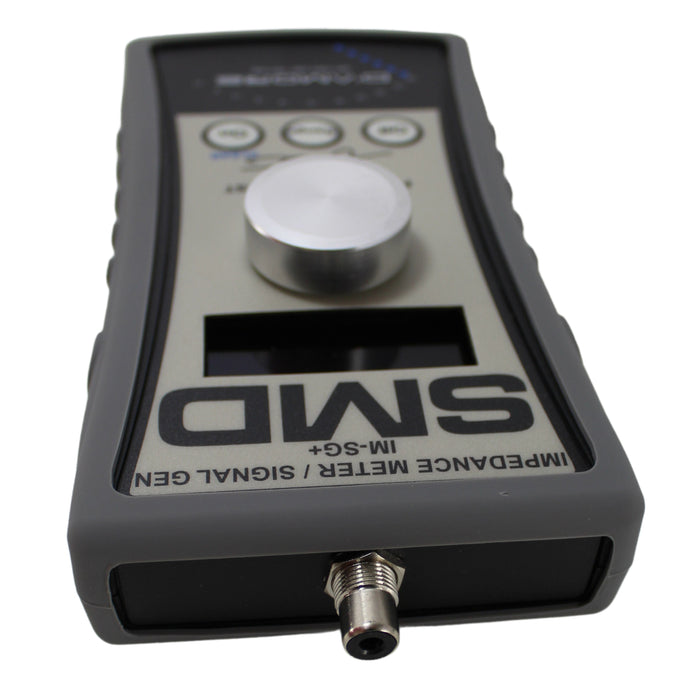

SMD IM-SG+ Steve Meade Designs Impedance Meter / Signal Generator Plus
This Listing Includes:
- (1) SMD IM-SG+ Meter /SGP
- (1) Impedance test harness
- (1) Y-adapter
- (1) User Manual
The Steve Meade Designs IM-SG+ is a pro-grade tool engineered to simplify system diagnostics, tuning, and testing. Designed with D'Amore Engineering, it delivers reliable measurements for raw drivers, loaded enclosures, crossover networks, cables, and multi-speaker systems across the full audio frequency range.
Powered by a 9V battery for noise-free operation, the IM-SG+ avoids the interference issues found with wall or vehicle adapters. Its intuitive controls include a smooth rotary knob, easy-to-read display, and range button with multiple modes for precision. The IM-SG+ combines four analog blocks: a sine wave generator, a pink noise generator, an analog amplifier, and an instrumentation amplifier. Driven by a powerful digital microprocessor for unmatched accuracy.
Whether you’re testing speaker impedance, locating vehicle rattles, tuning a crossover, or analyzing enclosure performance, the IM-SG+ is a must-have for serious installers, competitors, and enthusiasts.
Features:
- Precision AC impedance meter with 10Hz - 20kHz range
- Stand-alone sine wave and pink noise generator
- Auto-lock for quick impedance peak/valley detection
- Min/Max impedance hold modes for advanced analysis
- Harness compensation for highly accurate T/S parameter testing
- Extended battery life with 9V battery operation
- Test raw drivers, enclosures, crossover networks, RCA cables, and speaker wire
- Find resonant frequencies in speakers, vehicles, or rooms for tuning and SPL optimization
- Detect rattles and vibration points with signal sweeps
- Safely determine the system impedance load to ensure amplifier stability
Specifications:
- Impedance Measurement Range 1 ohm - 100 ohms with 0.1ohms resolution
- Low Impedance Measurement Range 0.00 ohm- 0.99 ohms with 0.01 ohms resolution
- Operating Range of Battery for tool accuracy 6.4 Volts - 10.5 Volts
- Sine Wave Generation Frequency Range greater than 8Hz - 20kHz in two ranges
- Frequency Measurement Accuracy greater than 99.5%
- Impedance Measurement Accuracy greater than 99% from 0 ohms - 30 ohms greater than 96% from 30 ohms - 99 ohms
- Pink Noise Generation Flatness 20 Hz - 20 kHz +/- 2.0dB
- Sine Wave Generation Frequency Response 10 Hz - 15 kHz +/- 0.8dB 10 Hz - 20 kHz +/- 1.5dB
- Battery Voltage Low Warning 7.2 Volts
- Generator Output Voltage (unloaded) 725 mV RMS
- Output Impedance of Signal Generator 10 ohms
Dimensions:
- Length: 9"
- Width: 6"
- Height: 2"
