- High Power Handling – 60W RMS / 260W MAX lets you upgrade your factory system with stronger, distortion-free sound.
- Premium Build – Glass fiber cone and rubber surround deliver durability and accurate mid-bass response.
- Clear, Crisp Highs – 0.8” neodymium tweeter with Mylar diaphragm ensures smooth treble and detailed vocals.
- Engineered for Daily Driving – 3-ohm impedance, 87dB sensitivity, and wide 80Hz–22kHz frequency response make it ideal for OEM replacement or aftermarket setups.
- Built to Last – Rugged steel basket and 9oz barium magnet provide long-term reliability in any vehicle.

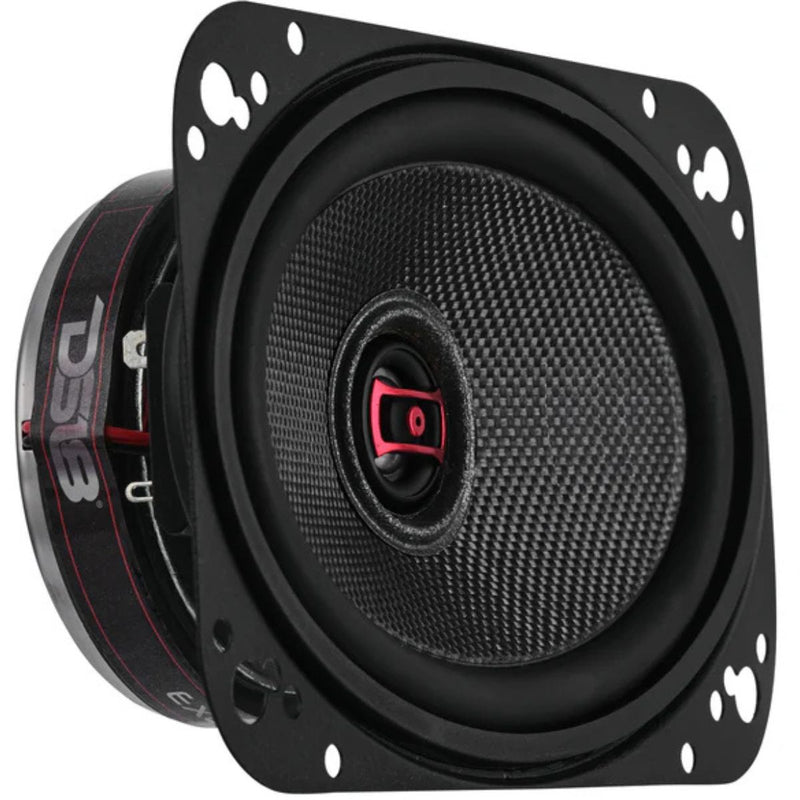

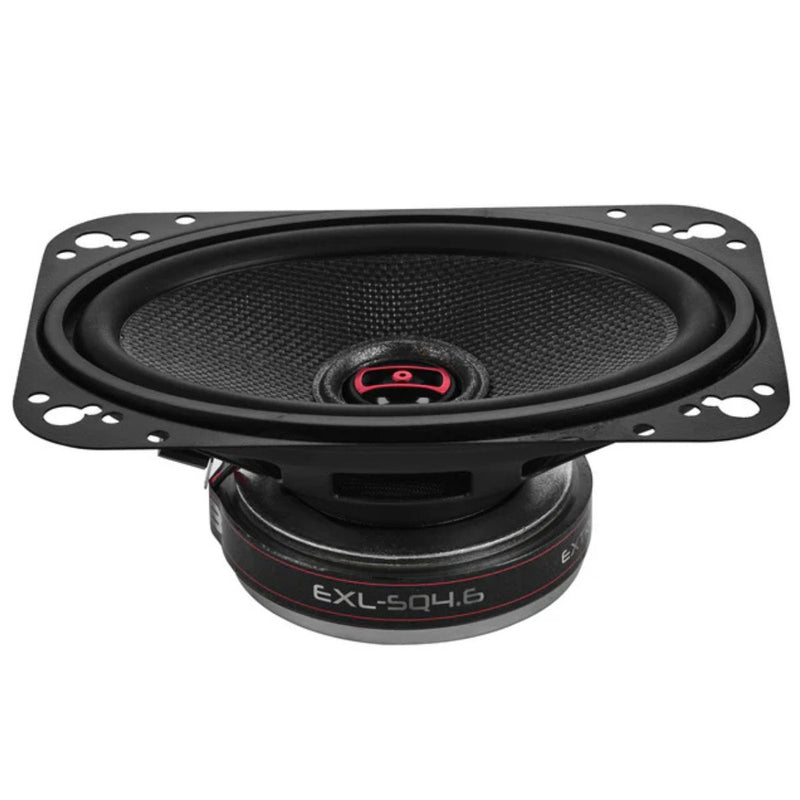

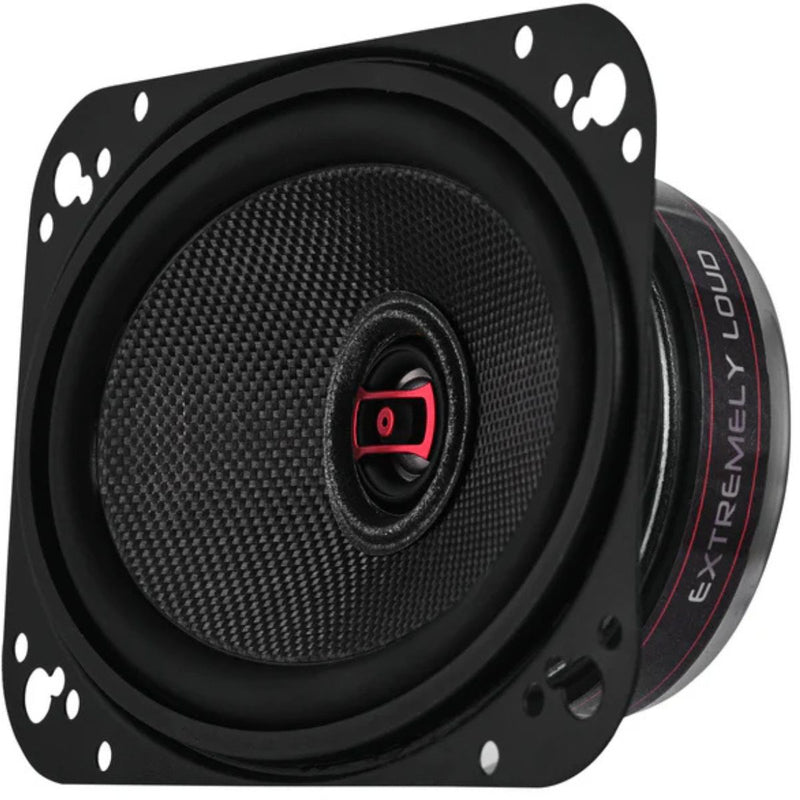

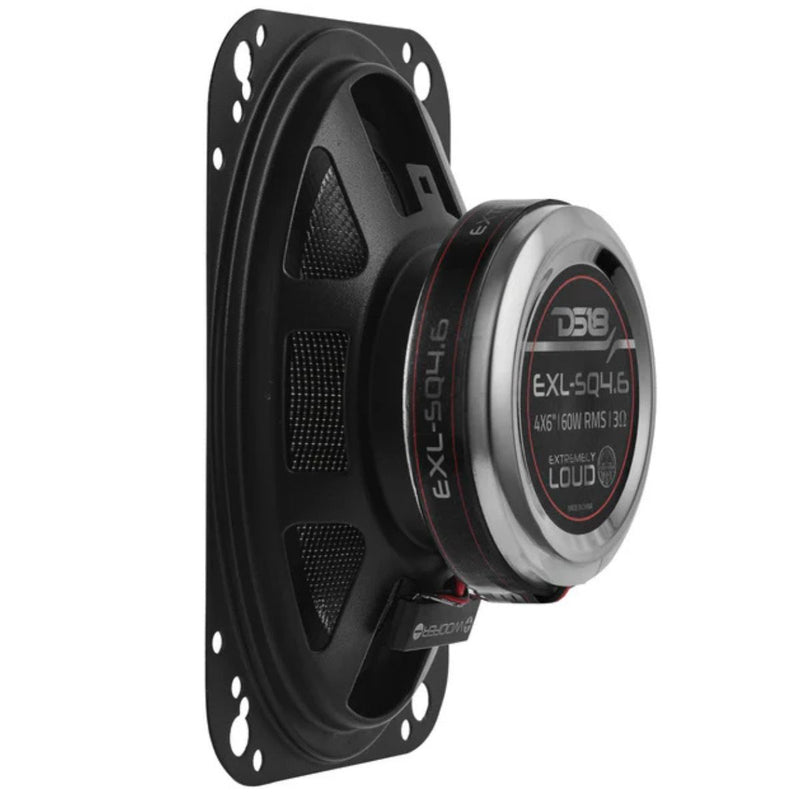

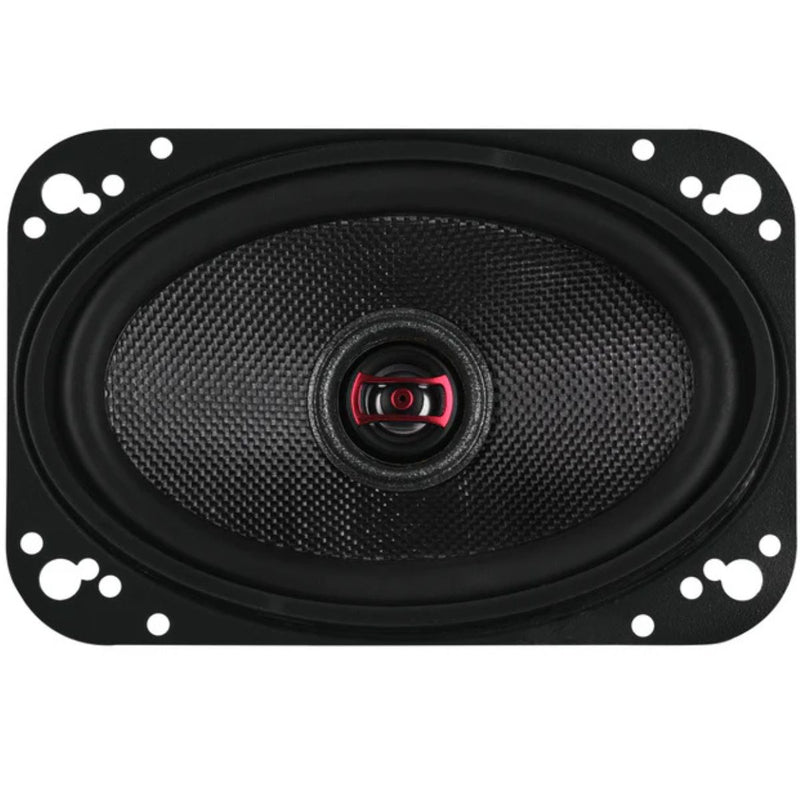

DS18 4x6â 60W RMS 3-Ohm 2-Way Coaxial Speaker pair w/ Fiber Glass Cone EXL-SQ4.6

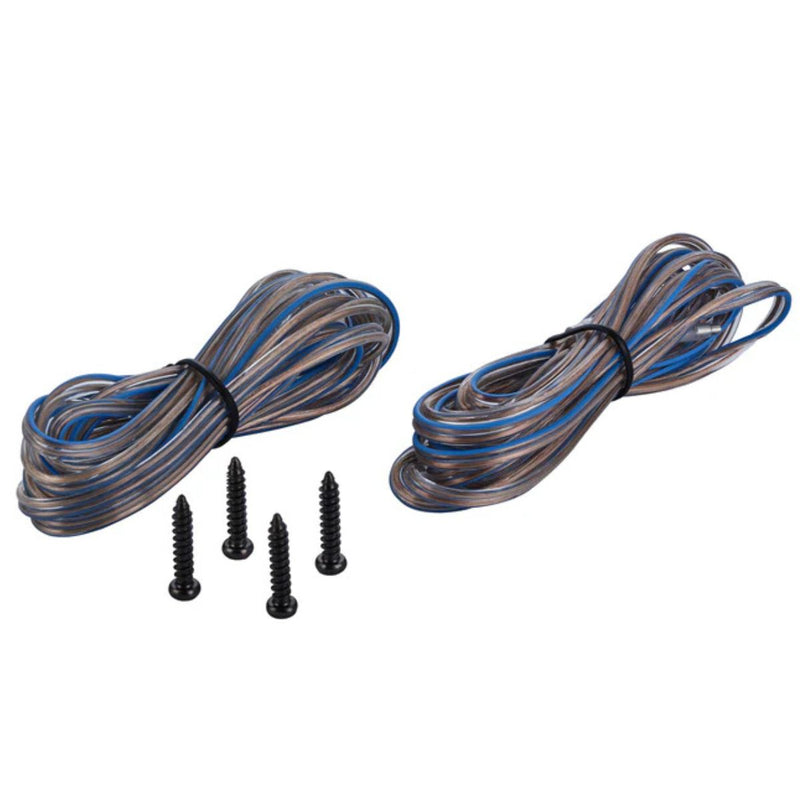

Included Items

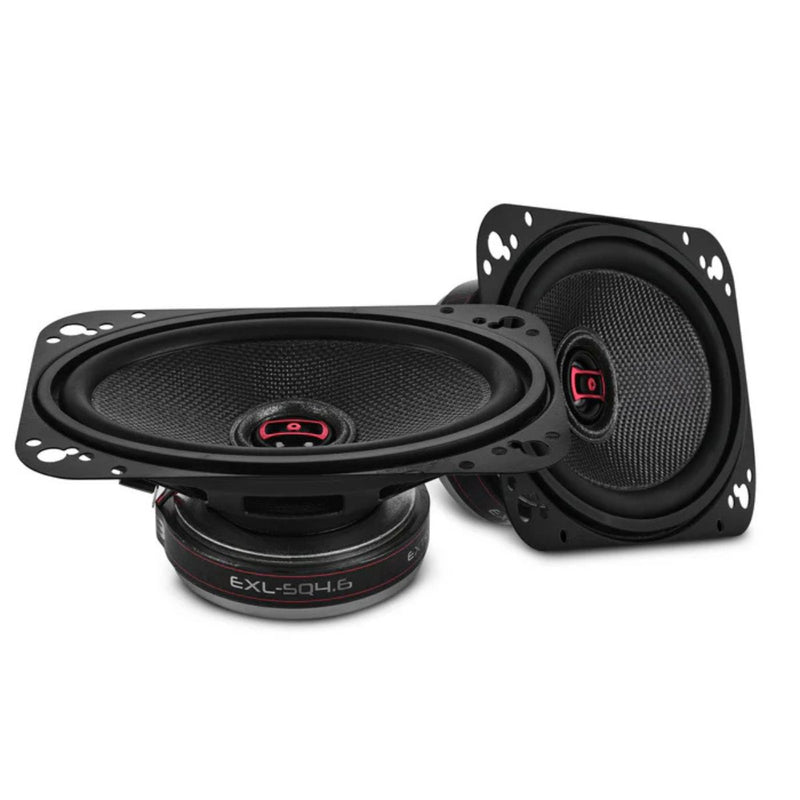

- (2) DS18 EXL-SQ4.6 4x6" 2-Way Coaxial Speakers
The EXL-SQ4.6 is your weapon of choice for crisp sound and precision detail that cuts through road noise with ease. Built for both performance and durability, these 4x6â coaxials handle 60W RMS / 260W MAX while delivering smooth highs, tight mids, and responsive low-end.
Whether youâre upgrading factory speakers or building a custom system, the EXL-SQ4.6 transforms any ride into a rolling soundstage.
Features
- Powerful Performance - 60W RMS / 260W MAX for clean daily sound.
- Glass Fiber Cone - Stiff and responsive, with a rubber surround for added durability.
- Bright Highs - 0.8" neodymium tweeter with Mylar diaphragm for crisp clarity.
- Pro-Grade Design - 1â ASV voice coil with copper winding for reliability.
- Built Tough - Steel black basket with barium magnet motor (9 oz).
- Pair Sold - Each box includes two speakers.
Specifications
- Nominal Diameter: 4x6" (101.6 Ã 152.4 mm)
- Configuration: 2-Way Coaxial
- Impedance: 3-Ohms
- RMS Power: 60W
- MAX Power: 260W
- Sensitivity: 87 dB (1W/1m)
- Frequency Response: 80Hz -22kHz
- Recommended Hi-Pass Crossover: 100Hz
- Pair or Single: Pair
- Grille Included: No
Woofer
- Cone Material: Glass Fiber
- Surround Material: Rubber
- Voice Coil Diameter: 1â (25.5 mm)
- Voice Coil Former: ASV
- Winding Material: Copper
- Basket Material: Steel (Black Finish)
- Magnet Material: Barium
- Magnet Weight: 9 oz
Tweeter
- Diameter: 0.8â (20.3 mm)
- Voice Coil Diameter: 0.5â (13 mm)
- Diaphragm Material: Mylar
- Magnet Material: Neodymium
Thiele & Small Parameters
- Equivalent Volume (Vas): 3.6L / 0.12 ft
- Free Air Resonance (Fs): 96 Hz
- Mechanical Factor (Qms): 4.964
- Electrical Factor (Qes): 1.136
- Total Factor (Qts): 0.924
- DC Resistance (Re): 2.8-Ohms
Dimensions:
- Overall Diameter: 4x6" / 102 Ã 155 mm
- Overall Depth: 2.37" (60.4 mm)
- Mounting Depth: 2.15" (54.8 mm)
- Front Mount Baffle Cutout: 3.5 Ã 5.5" (91 Ã 140 mm)
- Motor Diameter: 3.14" (80 mm)
Why Choose the EXL-SQ4.6?
The DS18 EXL-SQ4.6 blends power, precision, and durability. From the glass fiber woofer to the neodymium tweeter, every component is engineered for performance. Upgrade your ride with speakers built to handle real-world listening - clear highs, tight mids, and robust mid-bass.
