- 600W RMS Power Handling, Strong and clean bass performance for daily systems, rated at 1200W max for headroom
- Dual 4 Ohm Voice Coils, Wire to 2 ohm or 8 ohm final load for flexible amplifier matching and multi sub setups
- Carbon Fiber Dust Cap, Reinforced cone structure with aggressive styling and added stiffness for improved control
- High Efficiency Output, 92 dB sensitivity with a 25Hz to 250Hz frequency response for deep, musical low end
- Durable Motor and Suspension, 2 inch black aluminum voice coil, 81 oz ferrite magnet, rubber surround, and steel basket built for long term reliability
DS18 10" 600 Watt RMS Dual 4 Ohm Carbon Fiber Dust Cap Subwoofer GEN-X104DCF
This Listing Includes:
- (1) DS18 GEN-X104DCF 10 Inch Subwoofer
The DS18 GEN-X104DCF 10 inch subwoofer is built for strong daily bass with clean output and reliable performance. Rated at 600 watts RMS and 1200 watts max, this sub delivers tight low end in sealed enclosures or louder, more aggressive output in ported boxes.
A non pressed paper cone combined with a carbon fiber dust cap increases stiffness while keeping the moving mass controlled. The 2 inch black aluminum voice coil and 81 oz ferrite magnet provide solid motor strength and heat control for long term durability.
Dual 4 ohm voice coils give you flexible wiring options, allowing you to run a 2 ohm or 8 ohm final load depending on your amplifier and system design. With a frequency response of 25Hz to 250Hz and a recommended low pass at 120Hz, the GEN-X104DCF is tuned for deep, musical bass in compact or multi sub setups.
Finished with a glossy red steel basket and rubber surround, this subwoofer looks aggressive and performs even harder.
Specifications:
- Nominal Diameter: 10 Inch, 254 mm
- Nominal Impedance: Dual 4 Ohm
- RMS Power Handling: 600 Watts
- Max Power Handling: 1200 Watts
- Sensitivity: 92 dB
- Frequency Response: 25Hz to 250Hz
- Recommended Low Pass Crossover: 120Hz
- Voice Coil Diameter: 2 Inch, 50.8 mm
- Voice Coil Former: Black Aluminum
- Cone Material: Non Pressed Paper
- Dust Cap: Carbon Fiber
- Surround: Rubber
- Basket: Steel, Glossy Red
- Magnet Type: Ferrite
- Magnet Weight: 81 oz
- Fs: 37Hz
- Qms: 5.07
- Qes: 0.76
- Qts: 0.66
- Vas: 23.67L, 0.835 ft3
- Xmax One Way: 10.5 mm
- BL: 9.26
- Mms: 140.16 g
- Re: 3.2 + 3.2 Ohms
- Le: 0.38 mH
- Sd: 352.99 cm2
- EBP: 48.6

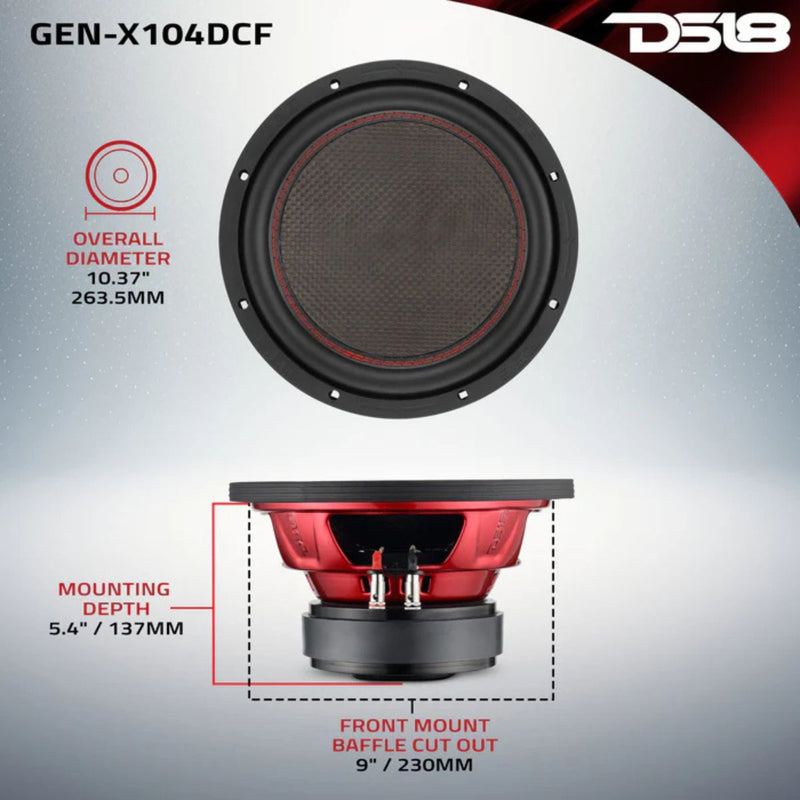

Dimensions:
- Overall Diameter: 10.37 Inch, 263.5 mm
- Overall Depth: 6 Inch, 152 mm
- Mounting Depth: 5.4 Inch, 137 mm
- Cutout Diameter: 9 Inch, 230 mm
- Motor Diameter: 6.1 Inch, 155 mm
