- Extreme Bass Combo – Includes 1 B2 Audio ZERO6 6000W Monoblock Amplifier and 3 RAGE V3 15" 2000W RMS Subwoofers for competition-level SPL performance.
- High-Powered Subwoofers – Triple 15" subs with dual 1-ohm 3" voice coils, 2000W RMS each, and 4,000W peak for deep, precise lows.
- Elite Amplifier Engineering – ZERO6 features triple 0 GA power/ground inputs, 8-toroid half-bridge design, and ACCU8 click-pot crossovers with clip indicator.
- Expandable System – Master/Slave daisy-chain allows strapping or linking multiple amps for synchronized high-output bass.
- Designed for Enthusiasts – Perfect for SPL competitors, audiophiles, or anyone seeking unrelenting power and clarity.
B2 Audio ZERO6 6K Amp + 3x RAGE V3 15" 2kW 1-0hm DVC RMS Subwoofers B2-Z6-COMBO4

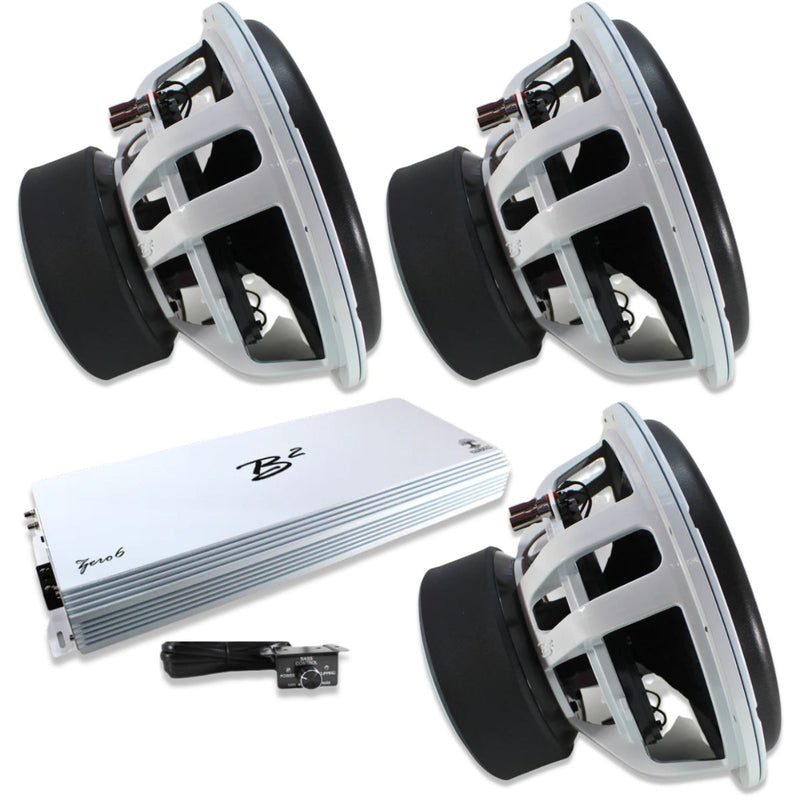

This Listing Includes
- (1) B2 Audio ZERO6 6000W Monoblock Amplifier
- (3) B2 Audio RAGE Series V3 15" 2000W RMS Dual 1-Ohm 3" Voice Coil Subwoofers

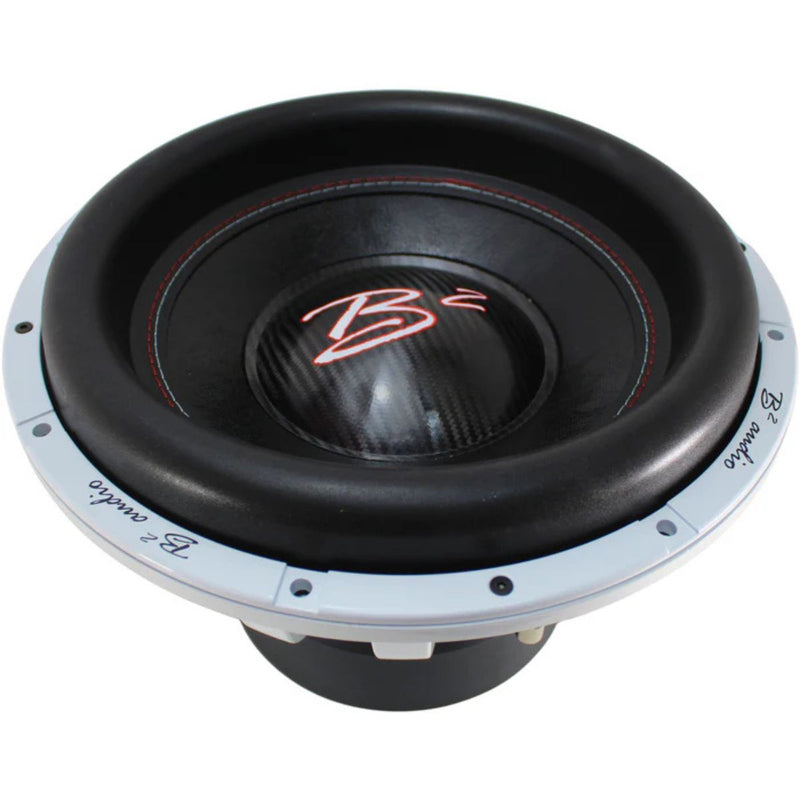

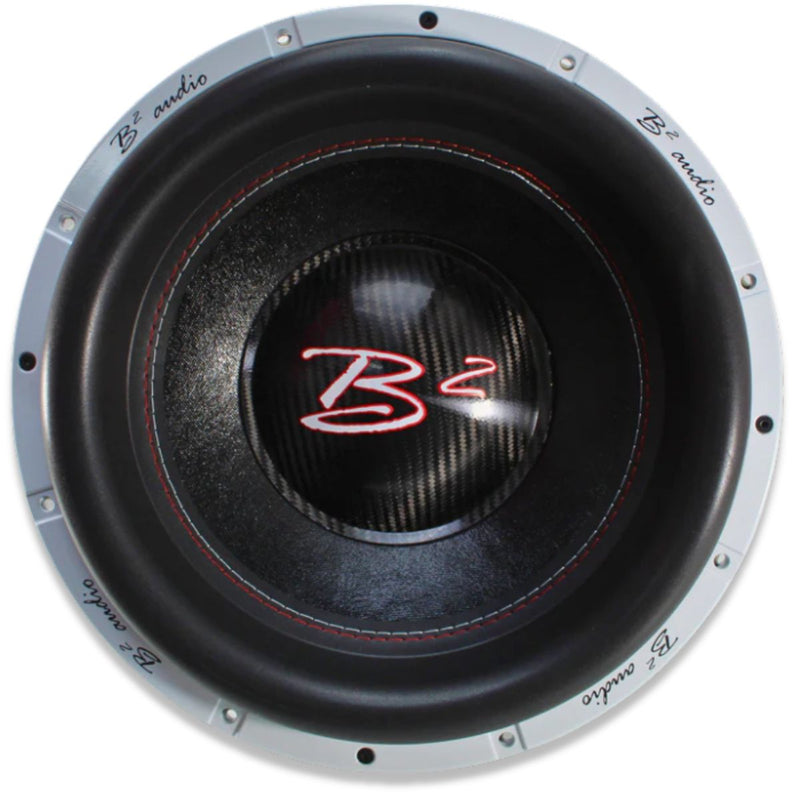

Dominate the streets and SPL competitions with the B2-Z6-COMBO4, featuring the B2 Audio ZERO6 Monoblock Amplifier paired with three B2 Audio RAGE V3 15" Subwoofers. Each sub delivers 2000W RMS, dual 1-ohm 3" voice coils, and a carbon fiber cone with a taller surround for increased excursion and precision.

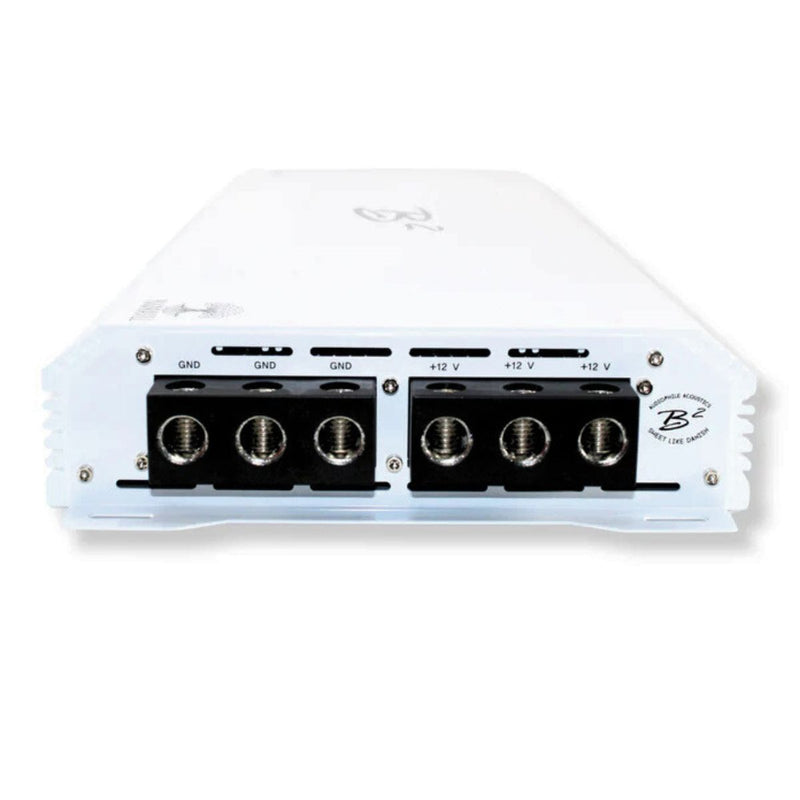

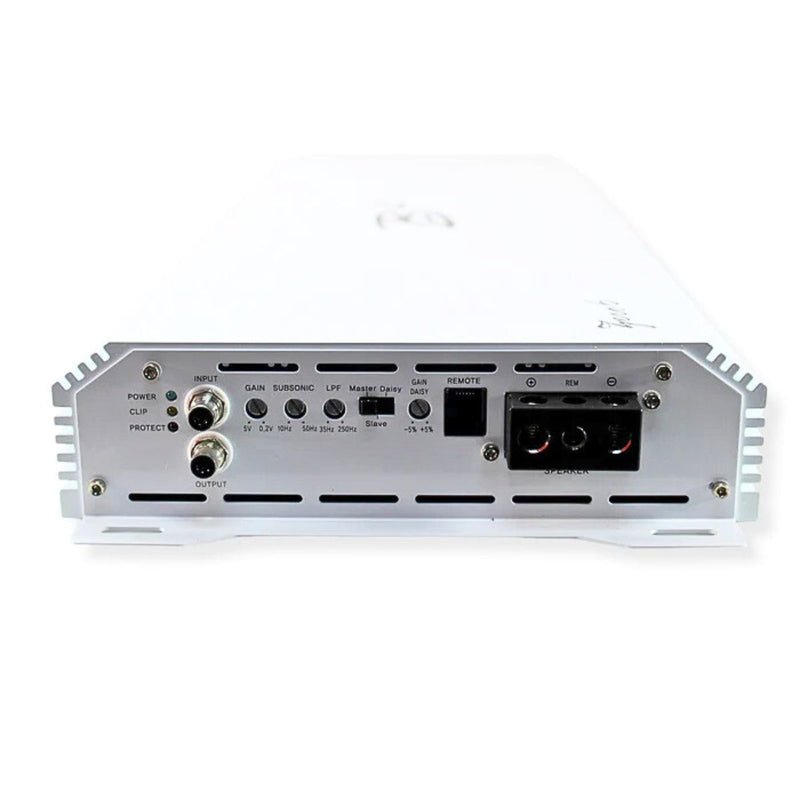

The ZERO6 amplifier provides triple 0 GA power/ground inputs, 8-toroid half-bridge design, and the ACCU8 click-pot crossover system with clip indicator for ultimate tuning control. Master/Slave daisy-chain functionality allows you to strap or link multiple amps for synchronized, high-output bass.
Built for audiophiles and SPL competitors, this combo delivers massive, clean bass, exceptional durability, and precision engineering for extreme low-frequency performance.
Combo Features
- Complete system -1 amplifier with 3 subwoofers, perfectly matched for SPL builds
- Amplifier delivers true 6000W RMS @ 1 ohm for competition-level performance
- RAGE V3 15" subs with dual 1-ohm 3" voice coils and 2000W RMS each
- ACCU8 click-pot crossovers with clip indicator for precise tuning
- Master/Slave daisy-chain for scalable, synchronized bass systems

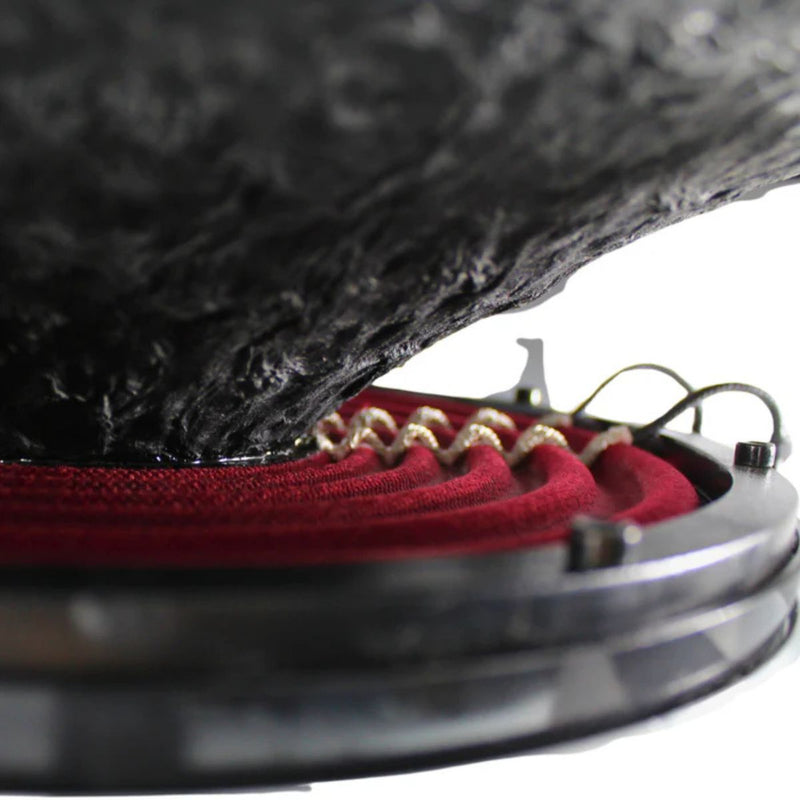

- Carbon fiber cones with taller surrounds for increased excursion
- Heavy-duty construction with high-temp voice coils and rugged baskets
- Ideal for SPL competitions, audiophiles, and high-output daily driving

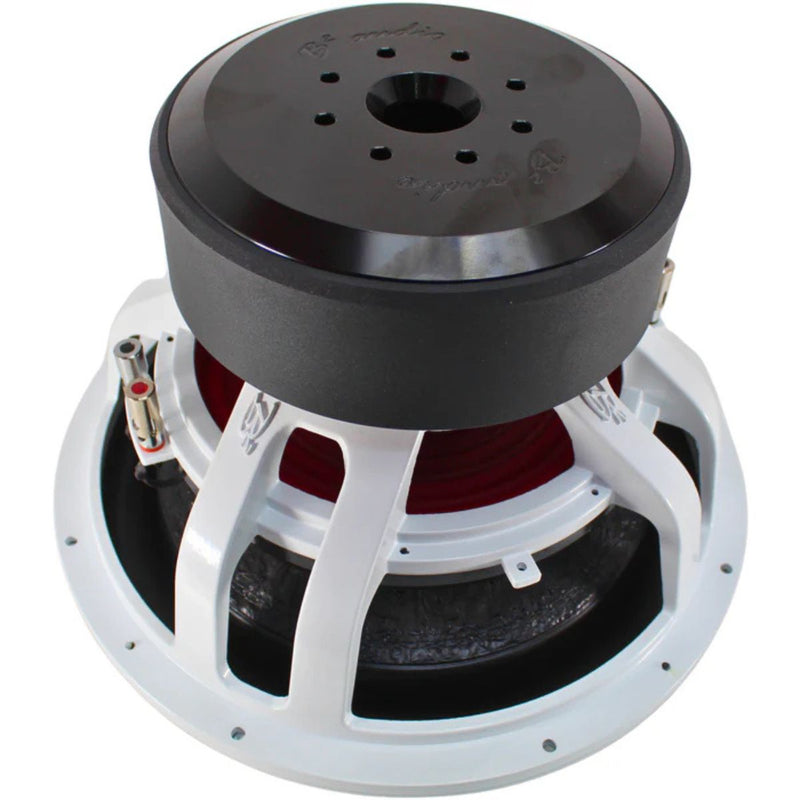

Subwoofer Specifications (RAGE15-D1-V3):
- RMS Power Handling: 2000 Watts
- Max Power Handling: 4000 Watts
- Push Terminal Wire Gauge: 4 Ga
- Nominal Impedance: Dual 1-Ohm
- Voice Coil Diameter: 3"
- Frequency Response: 10 Hz - 500 Hz
- Sensitivity: 82.4 dB
- Magnet Weight: 600 oz
- Displacement Volume: 10.7 L / 0.37 cu. ft.
Thiele & Small Parameters
- Free Air Resonance (Fs): 26.8 Hz
- Resistance (Re): 1-Ohm
- Mechanical Factor (Qms): 5.11
- Electrical Factor (Qes): 0.41
- Total Factor (Qts): 0.38
- Equivalent Volume (Vas): 67.1 L
- Compliance (Cms): 70 um/N
- BL Factor (BL): 200 BL^2/RE
- Moving Mass (Mms): 476.3 g
- Excursion Max (Xmax): 20 mm
Dimensions:
- Overall Diameter: 15.35" / 390 mm
- Mounting Diameter: 13.77" / 350 mm
- Bolt Pattern Diameter: 14.76" / 375 mm
- Overall Depth: 9.92" / 252 mm
- Mounting Depth: 8.66" / 220 mm
Enclosure Recommendations (per subwoofer):
- Sealed: 50 L / 1.77 cu.ft, Qtc 0.464
- Ported Compact: 100 L / 3.5 cu.ft, 2x4" Ports, Length 11.2", FB 35 Hz
- Ported Standard: 142 L / 5 cu.ft, Port 43.4 sq.in, Length 22.2", FB 30 Hz

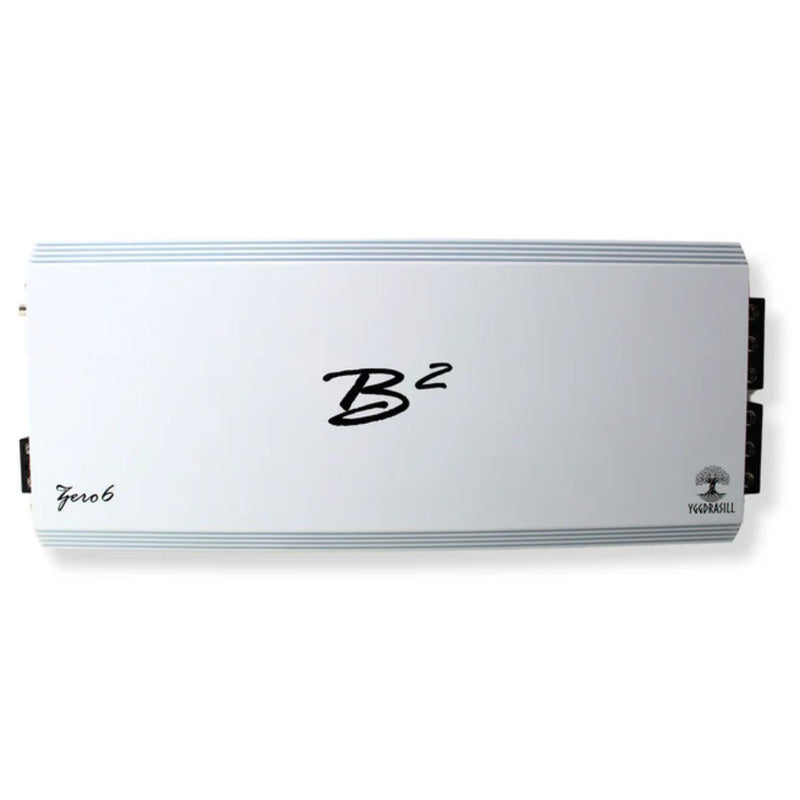

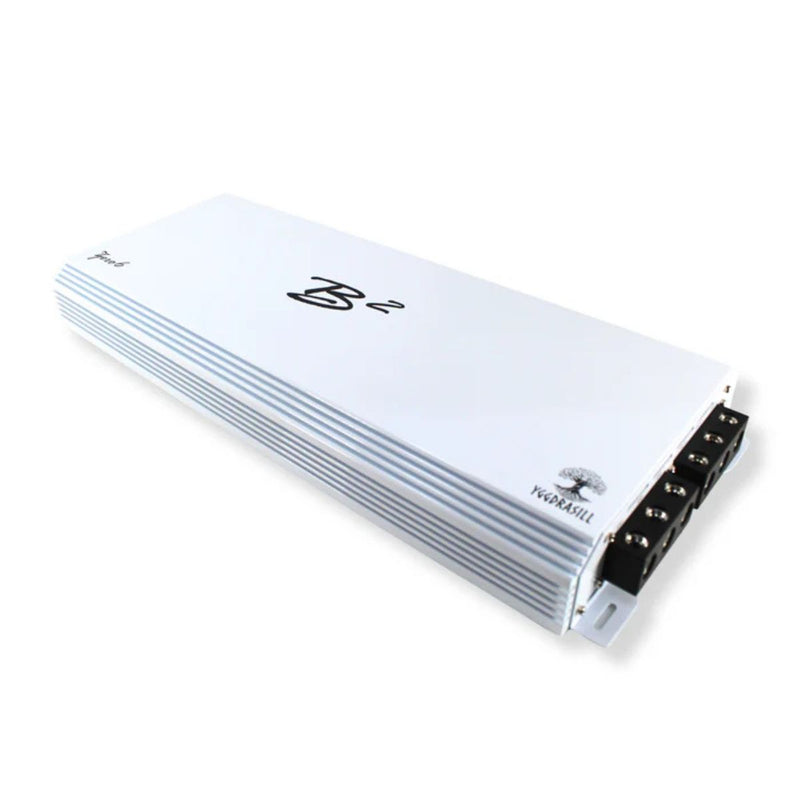

Amplifier Specifications (ZERO6 âYggdrasilâ):
- RMS Power @ 4 Ohm (14.4V): 2100W
- RMS Power @ 2 Ohm (14.4V): 3800W
- RMS Power @ 1 Ohm (14.4V): 6000W
- Burst Power @ 0.5 Ohm (13.5V): 9200W
- Frequency Response: 10 Hz - 300 Hz
- Signal-to-Noise Ratio: >95 dB
- Input Sensitivity: 5 V - 0.2 V
- Crossover Slope: 24 dB/Oct
- Low Pass Crossover: 35 Hz - 250 Hz
- Subsonic Crossover: 10 Hz - 50 Hz
- Phase Adjustment: 0 - 180
- Damping Factor: >400
- Power Terminal Gauge: 0 GA x 3
- Speaker Terminal Gauge: 4 GA
- Fuse Rating: 500 A
- Operating Voltage: 9 V - 17.5 V
- Weight: 21.15 lbs.
Dimensions:
- Length: 21.64" (545mm)
- Width: 8.7" (220mm)
- Height: 2.55" (65mm)
