- 5000W RMS / 10,000W MAX – Built for serious SPL performance with extreme power handling.
- Massive 1100oz Ferrite Motor – Ensures deep, controlled bass with heavy motor force.
- Carbon Fiber Cone & TWS Foam Surround – Lightweight, responsive cone material paired with tall foam surround for maximum excursion and durability.
- Optimized for SPL & Enclosure Tuning – Sealed, ported, or 4th-order bandpass options available; ideal for competitions and ground-pounding systems.

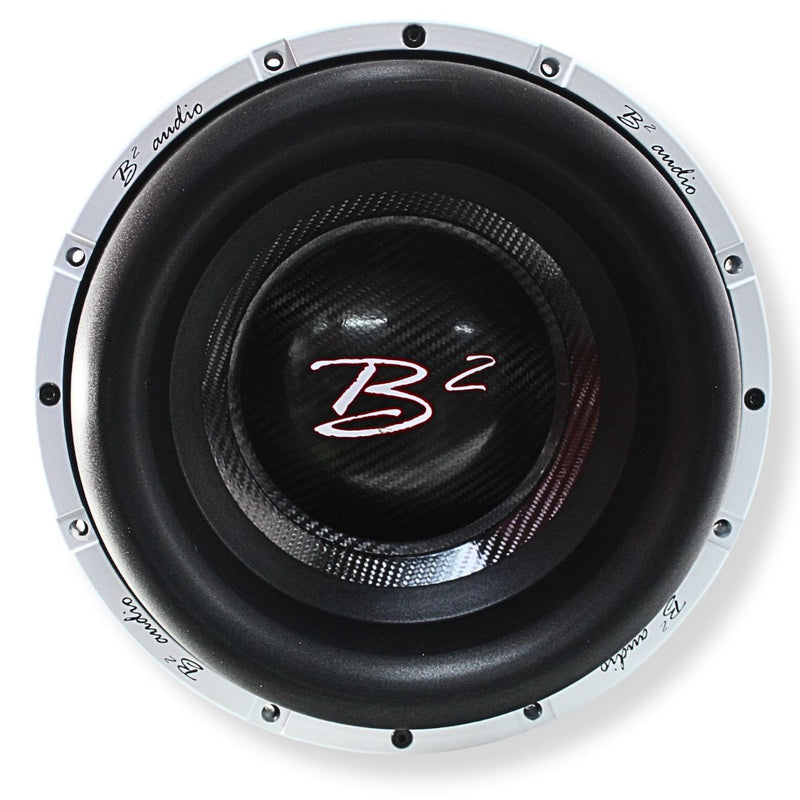

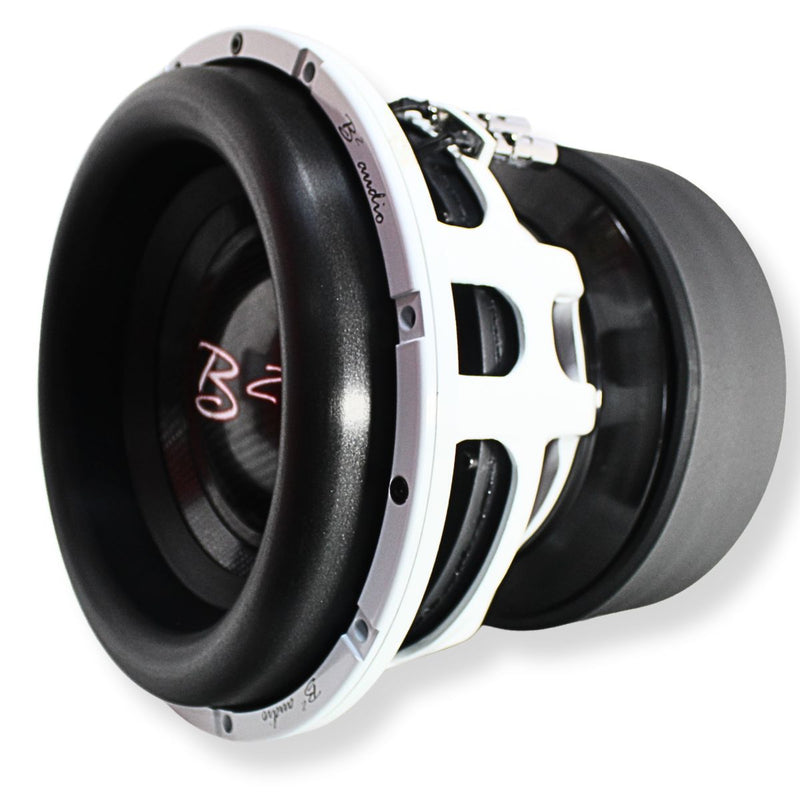

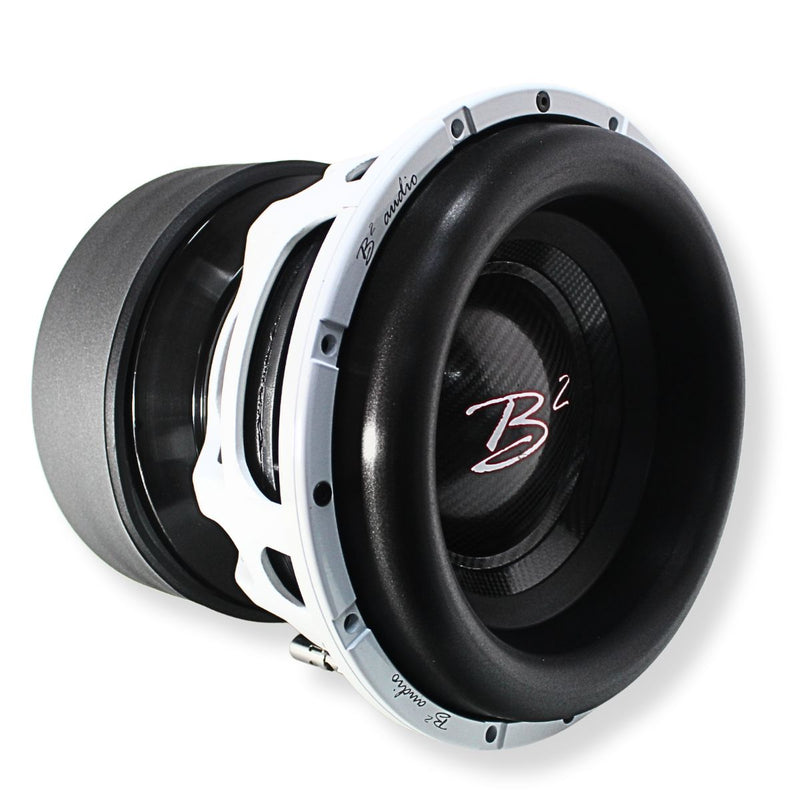

B2 Audio RAMPAGE Series 12" Dual 2-Ohm 4" Voice Coil 5000 Watt RMS Subwoofer
Listing Includes
- (1) 12" RAMPAGE DVC 2-Ohm Subwoofer
Item Description
The B2 Audio RAMPAGE12-ELITE-D2 is a 12" subwoofer built for brutal bass and elite-level performance. With 5000 Watts RMS and a mind-blowing 10,000 Watts max, this sub is ready to flex hard in daily builds or dominate in SPL competition lanes.
Equipped with a 4" aluminum 8-layer voice coil, dual 2 Ohm impedance, and a carbon fiber cone, the RAMPAGE Elite D2 model delivers serious excursion, impact, and reliability. The TWS tall wide foam surround helps push the 40mm of one-way Xmax, while the heavy 1100 oz ferrite motor powers low-end output that hits hard and clean.
This subwoofer is engineered to perform in sealed, ported, or bandpass enclosures, giving installers and competitors tuning flexibility. Whether you're building a daily banger or a ground-pounding demo rig, the RAMPAGE12-ELITE-D2 brings pure, unfiltered bass.
Features
- High-performance 12" competition-grade subwoofer
- 5000W RMS / 10,000W peak power handling
- Dual 1 Ohm configuration for flexible wiring options

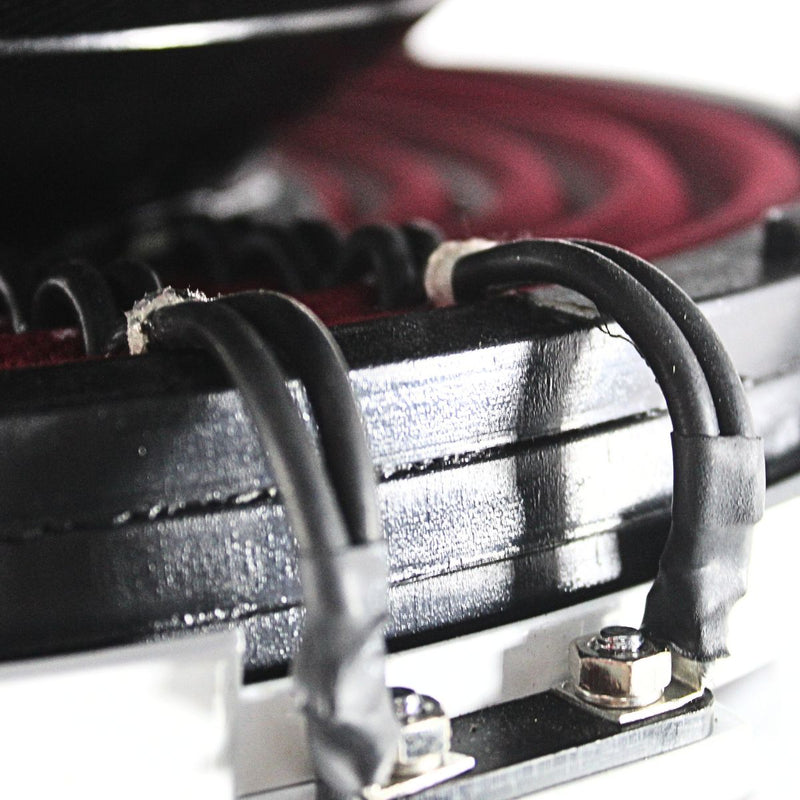

- Oversized 4" / 101.6mm 8-layer aluminum voice coil

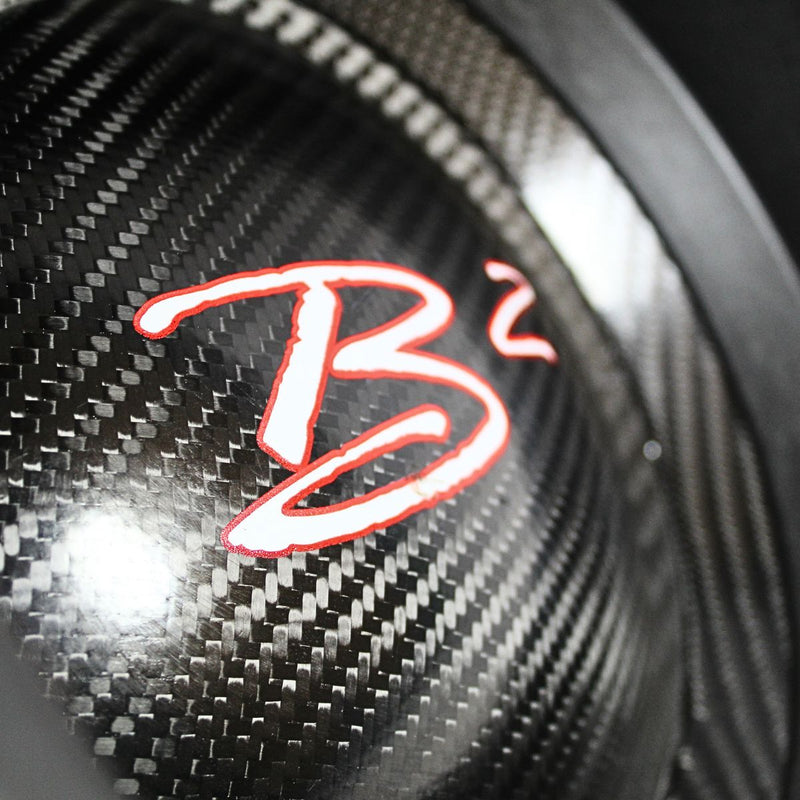

- Premium carbon fiber cone for lightweight strength
- TWS tall wide foam surround for extended excursion

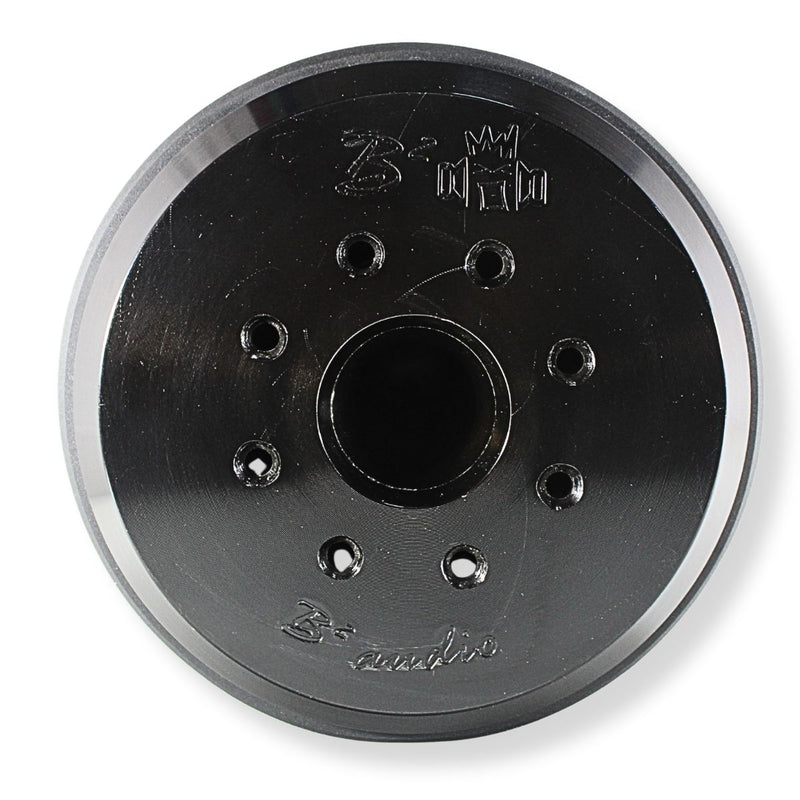

- Massive 1100 oz ferrite motor for unmatched motor force

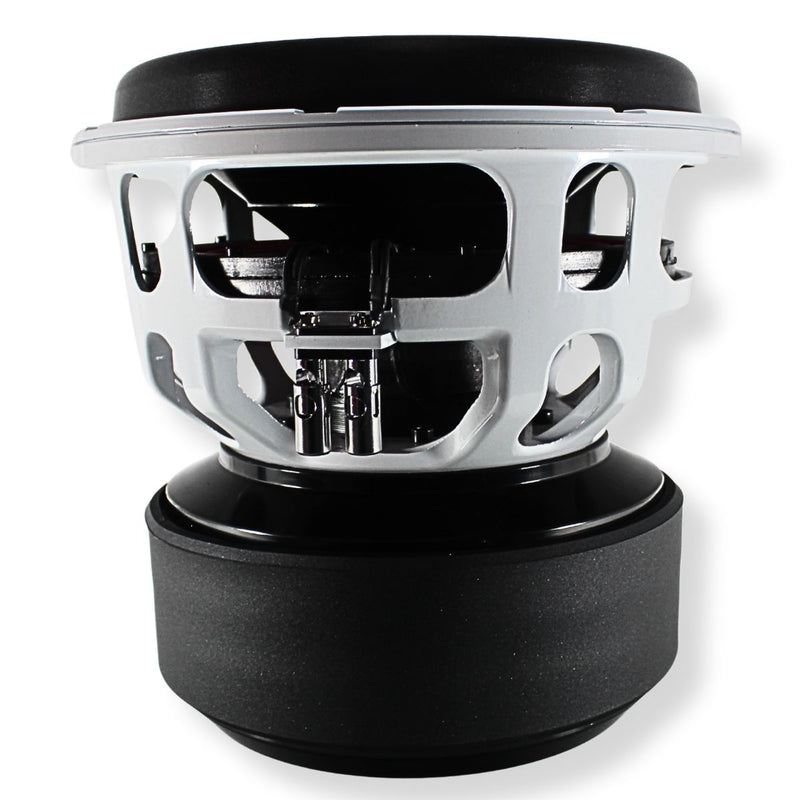

- Cast aluminum basket for reduced resonance and rigidity
- 40mm one-way Xmax for deep, clean, and hard-hitting bass
- Engineered for SPL competitions, demo builds, and extreme daily setups
- Wide frequency response from 10Hz to 500Hz
- Designed to perform in sealed, ported, or bandpass enclosures
- Hand-built quality from B2 Audio for serious audio enthusiasts
Specifications
- Subwoofer Size: 12 Inch
- RMS Power: 5000 Watts
- Peak Power: 10,000 Watts
- Impedance: Dual 2 Ohm (DVC)
- Voice Coil Diameter: 4" / 101.6mm
- Voice Coil Material: 8-Layer Aluminum
- Magnet Type: Ferrite
- Motor Assembly Weight: 1100 oz
- Sensitivity: 81.6 dB (1w/1m)
- Frequency Response: 10 Hz – 500 Hz
- Resonant Frequency (Fs): 32.9 Hz
- Cone Material: Carbon Fiber
- Surround Material: TWS Tall Wide Foam
- Xmax (one way): 40 mm
- Vas: 12.1 L
- Qts: 0.44
- Qes: 0.47
- Qms: 6.81
- RE (DC Resistance): 3.6 Ohm
- Le (1kHz): 3.94 mH
- BL/RE: 265.3
- Efficiency: 0.09%
- MMS: 602 g
- Cms: 40 um/N
- Sd: 461.5 cm
- EBP: 70
Recommended Enclosures
Sealed: 28.3 L / 1 Cubic ft
Qtc: 0.435
Fb: 60.3 Hz
Ported (Compact): 28.3 L / 1 Cubic ft
Fb: 38 Hz
Port Area: 4"
Port Length: 19.7"
Ported (Full Size): 75 L / 2.65 Cubic ft
Fb: 32 Hz
Port Area: 28.3 squared inches
Port Length: 24.4"
Bandpass 4th Order Ratio: 3:1
Dimensions
- Mounting Depth: 10.2" / 258 mm
- Cutout Diameter: 11.1" / 282 mm
- Overall Diameter: 12.44" / 316 mm
- Total Depth: 10.83" / 275 mm
- Net Weight: 80.5 lbs
- Shipping Weight: 86.4 lbs
- Shipping Box Dimensions: 16" x 16" x 17"
