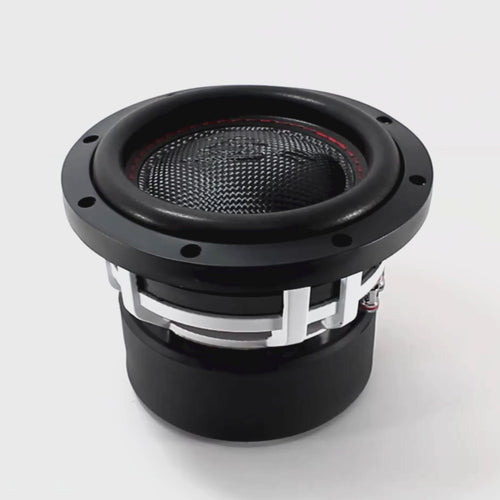

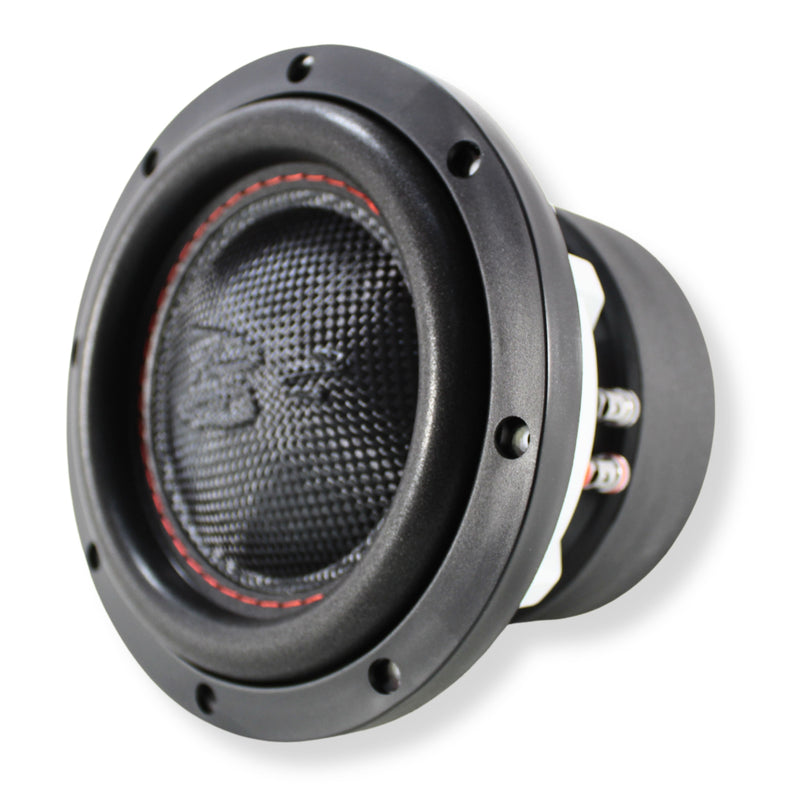

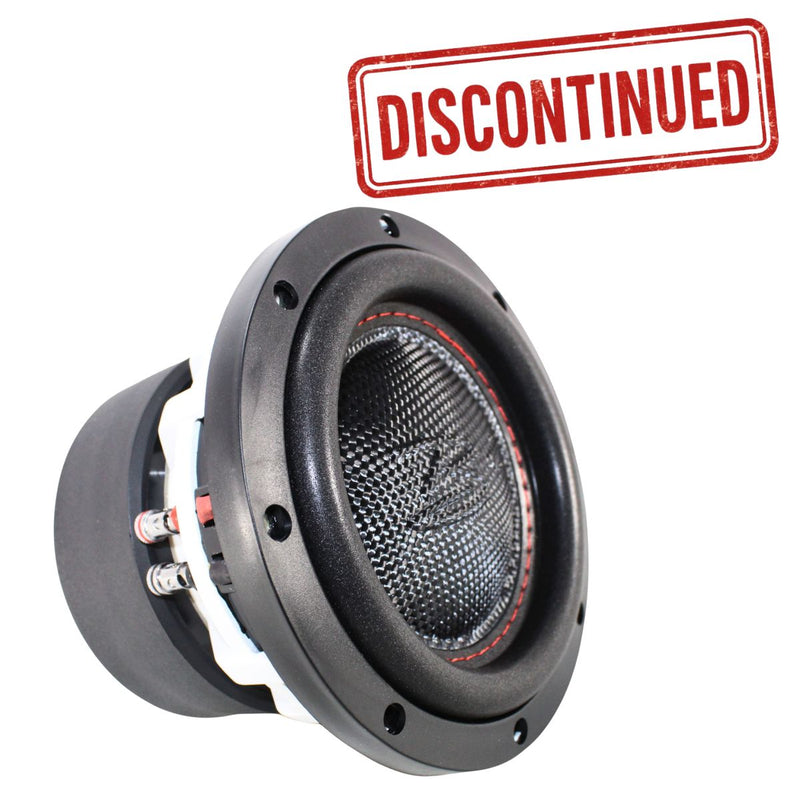

B2 Audio RAGE Series 6" Dual 2" Voice Coil 2-Ohm 350W RMS Subwoofer RAGE6-D2

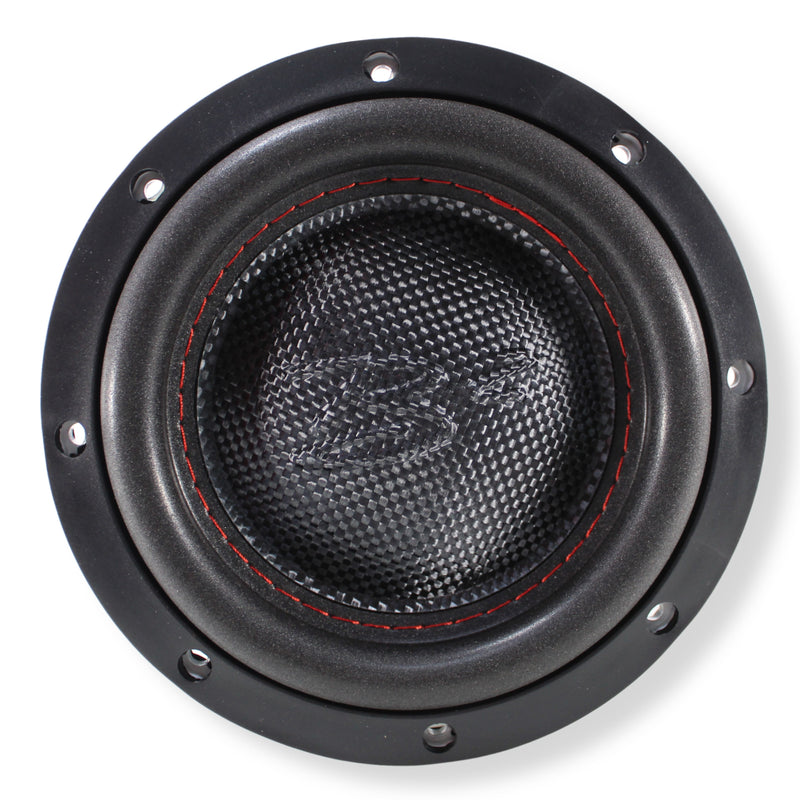

• Custom Carbon Fiber Dustcap: The new protruding logo on the carbon fiber dustcap adds rigidity and strength to the cone, ensuring stable performance even at high volumes.

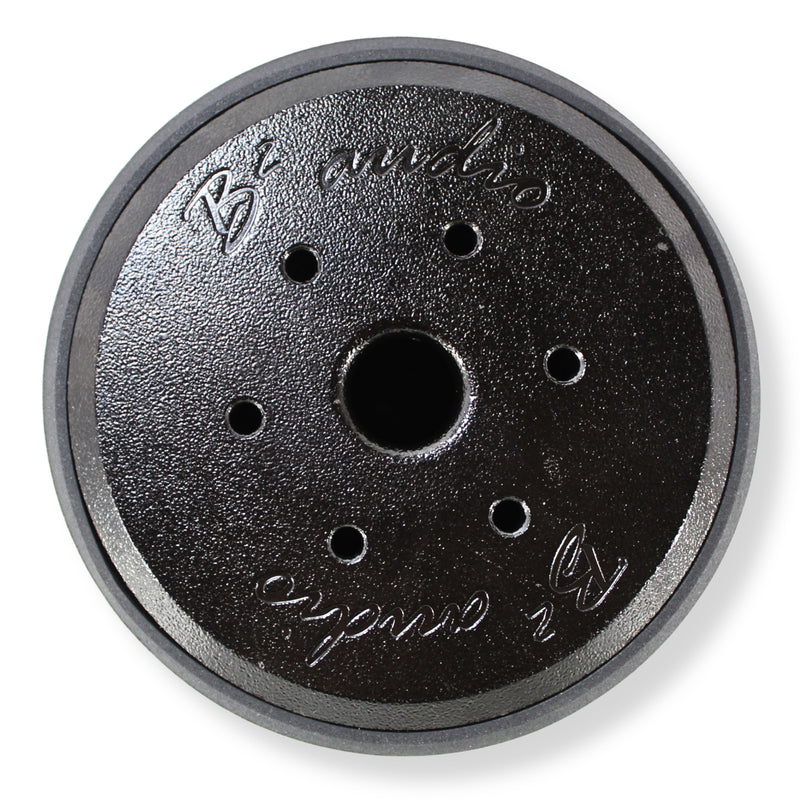

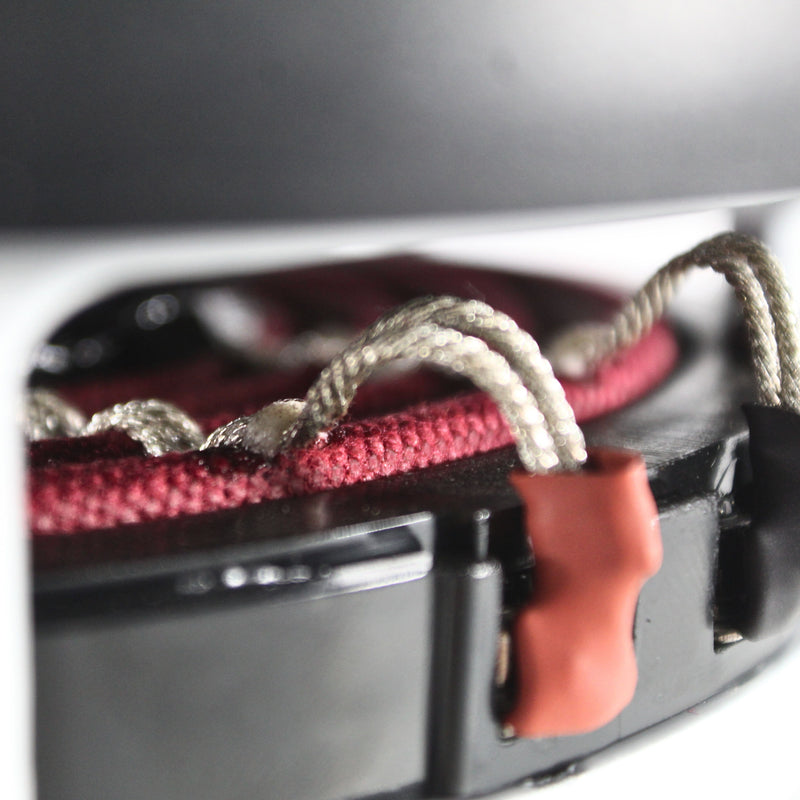

• Enhanced Subwoofer Performance: The RAGE subwoofer features a redesigned Bolted down spider and additional pole vents for increased power handling and minimized mechanical noise.
• Dual Voice Coil Configuration: Dual 2-Ohm impedance allows for versatile wiring options, making it compatible with various amplifier setups.
• Premium Construction: Built with quality materials and a 2" voice coil diameter, this subwoofer offers durability and longevity for long-term use.
• Powerful Audio Output: With a frequency response of 10 Hz to 500 Hz and a power handling of 350 Watts RMS, this subwoofer delivers deep, impactful bass.

B2 Audio RAGE Series 6" Dual 2" Voice Coil 2-Ohm 350W RMS Subwoofer RAGE6-D2

This Listing Includes:

• (1) 6" DVC 2-ohm  RAGE Subwoofer

Experience powerful, precise bass with the B2 Audio RAGE6-D2 6" Dual Voice Coil Subwoofer. With its robust construction and versatile impedance options, this subwoofer delivers deep, impactful bass across a wide frequency range. With a peak power handling of 700W and sensitivity of 86.2 dB, it ensures impressive performance in any audio setup.

Features

• Compact Yet Powerful: 6" subwoofer designed for tight installs without compromising output.


• Dual 2-Ohm Voice Coils: Allows for flexible wiring configurations and optimized amplifier matching.


• 350W RMS / 700W Max: High power handling for serious bass performance in a compact form.

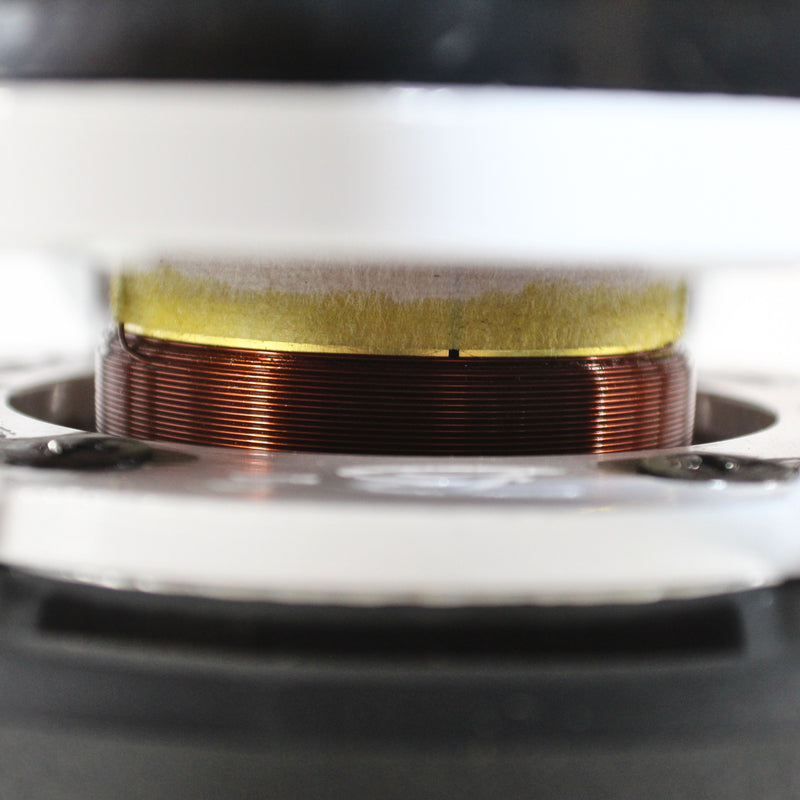

• 2" Copper Voice Coil: Maintains thermal stability and high efficiency during demanding playback.


• Heavy-Duty 140 oz Magnet: Delivers controlled cone movement and stronger motor force.


• Versatile Enclosure Options: Supports sealed, ported compact, and full ported designs for tailored sound.


• Wide Frequency Range: Reaches from 10 Hz to 500 Hz for full low-end coverage.

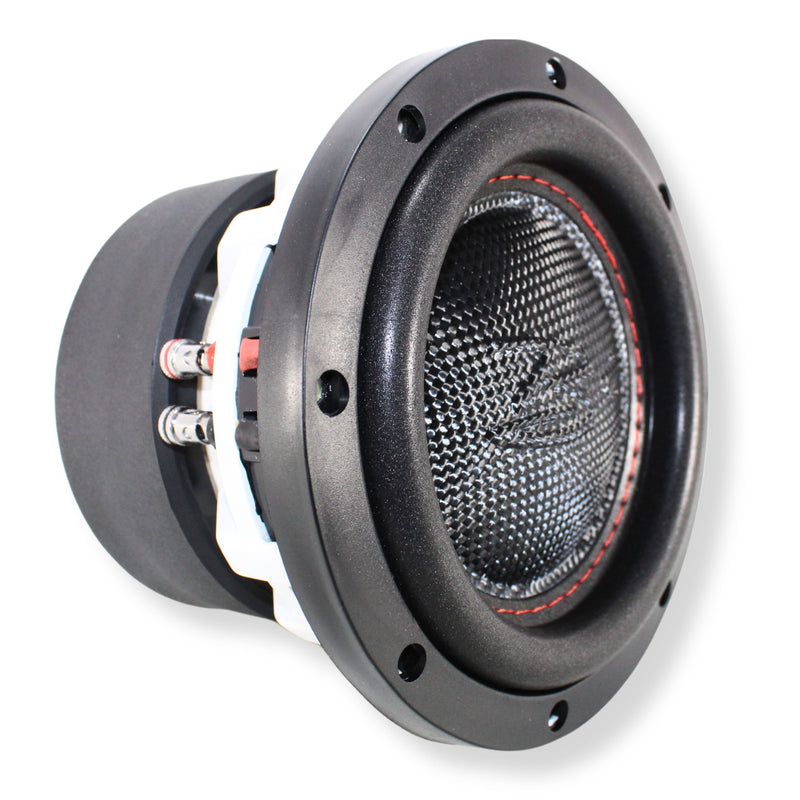

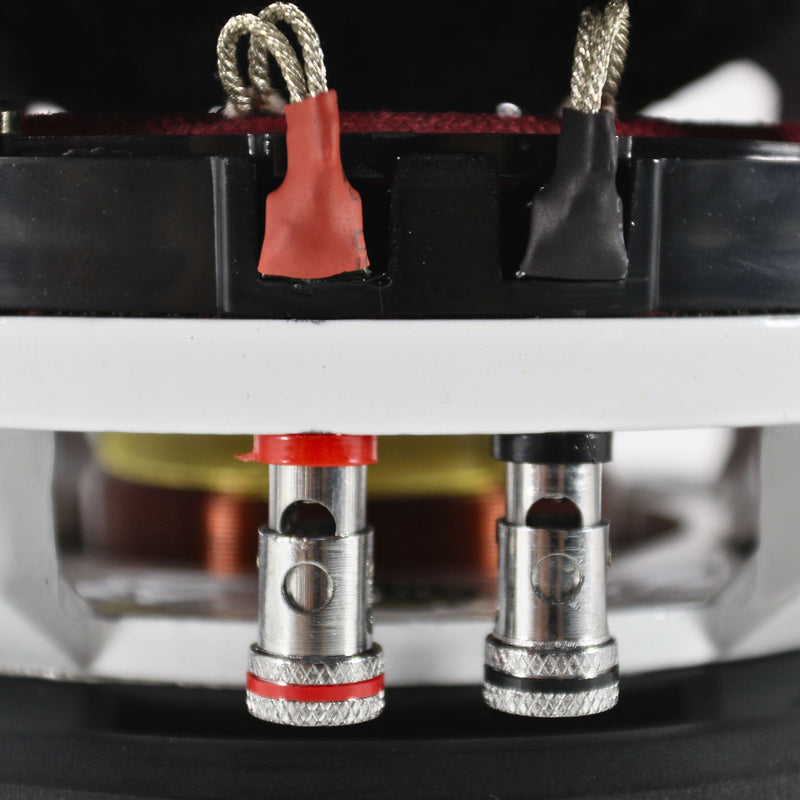

• Custom Terminals: 12 AWG push terminals support secure, high-current connections.


• Optimized Suspension Design: 15 mm of excursion and compliant suspension deliver clean, punchy bass.


• Ideal for Tight Installs: Perfect for custom builds, under-seat installs, or stealth enclosures.

Specifications:

• RMS Power Handling: 350W


• Max Power Handling: 700W


• Nominal Impedance: Dual 2 Ohm


• Voice Coil Diameter: 2"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 86.2 dB


• Magnet Weight: 140 oz


• Displacement Volume: 1.6 L / 0.056 cu.ft


• 12 AWG Wire Inputs For Push Terminals

Thiele & Small

• Free Air Resonance (Fs): 44.9 Hz


• Resistance (Re): 1.9 ohm


• Mechanical Factor (Qms): 6.17


• Electrical Factor (Qes): 0.53


• Total Factor (Qts): 0.49


• Mechanical Resistance (Rms): 2.77


• Equivalent Volume (Vas): 3.3 L


• Compliance (Cms): 130 um/N


• BL Factor (BL): 54.6 TM


• Moving Mass (Mms): 100 g


• Excursion Max (Xmax): 0.59" / 15 mm

Measurements:

• Overall Diameter: 7.08" / 180mm


• Mounting Diameter: 6.42 / 163mm


• Front Mount Baffle Cutout: 5.98" / 152mm


• Overall Depth: 5.43" / 138mm


• Mounting Depth: 4.60" / 117mm

Enclosure Suggestions:

Sealed:

• 5 L / 0.178 cu.ft


• Qtc 0.405

Ported Compact:

• 12 L / 0.42 cu.ft


• Port: 2"


• Length : 9.43" / 24cm


• FB: 42 Hz

Ported:

• 18 L / 0.636 cu.ft


• Port: 3"


• Length: 14.17" / 36cm


• FB: 42hz
