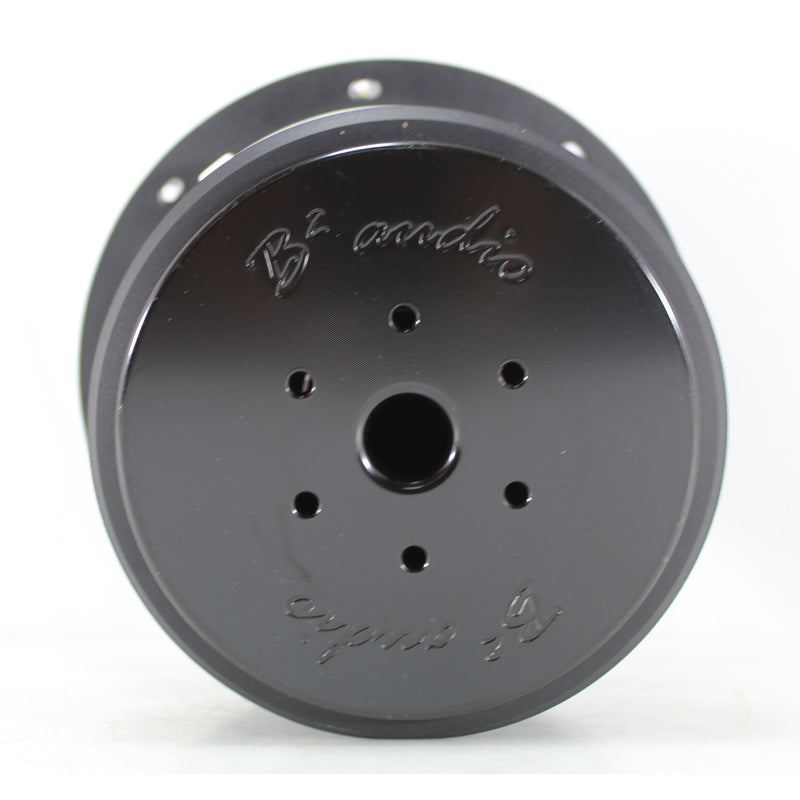

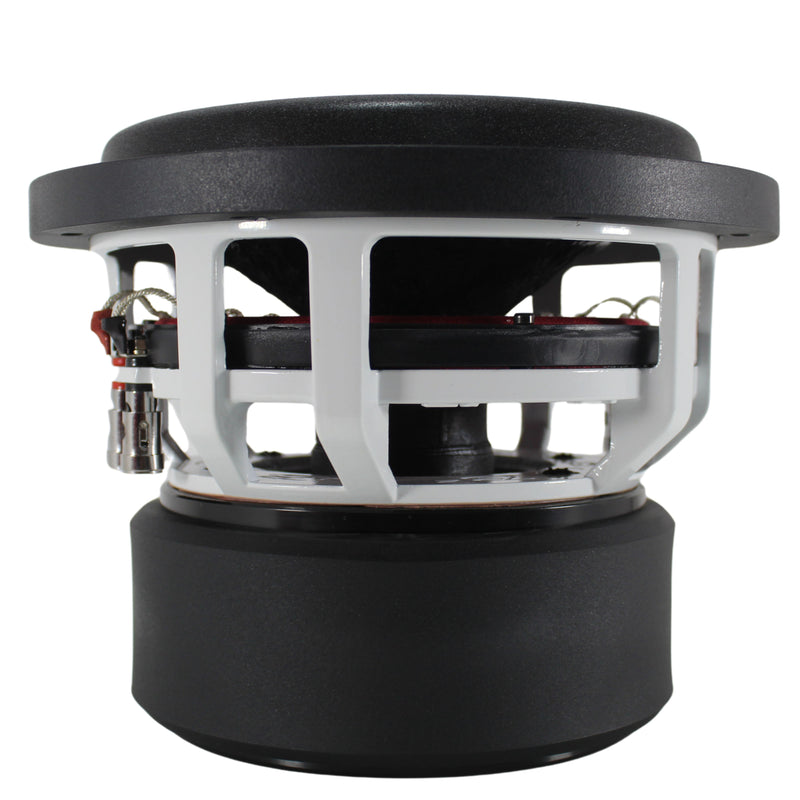

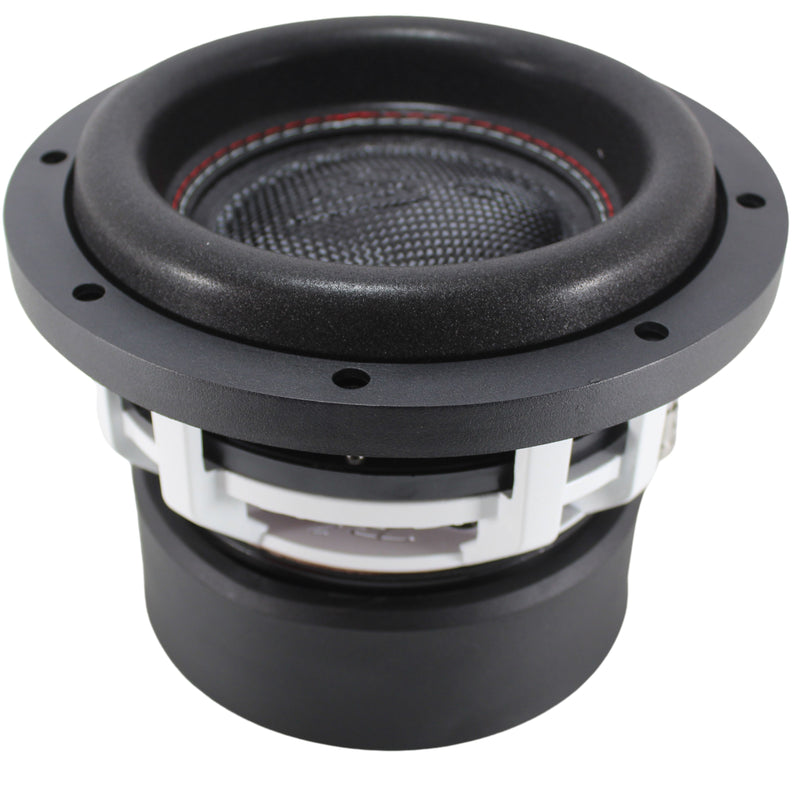

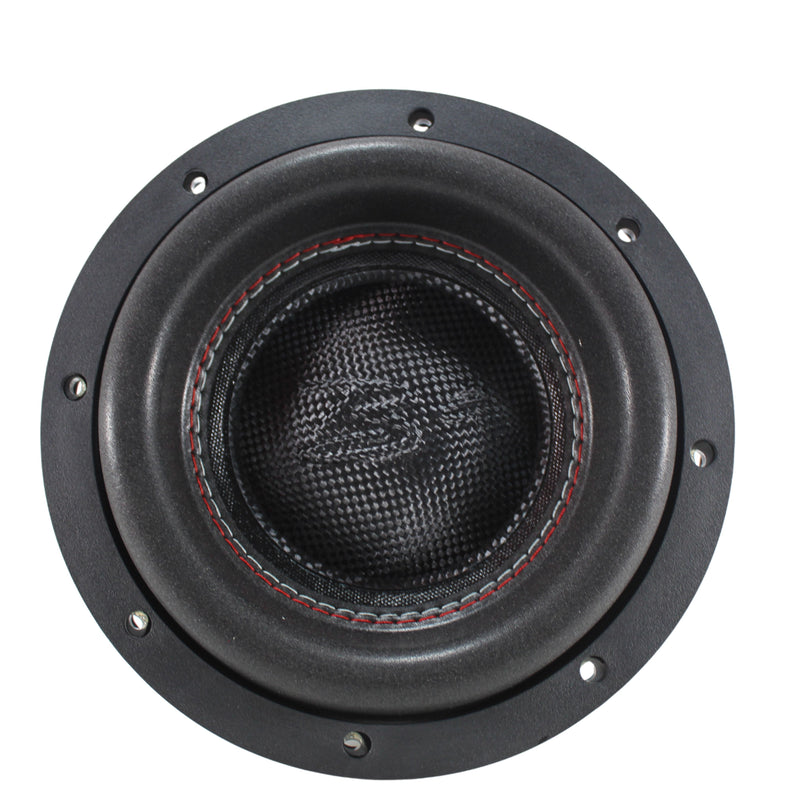

8" 500 Watts RMS Dual 2-Ohm 2" Voice Coil High Excursion RAGE Series Subwoofer

• Experience powerful, deep bass with the compact 8" B2 Audio RAGE V3 subwoofer, delivering 500 Watts RMS.
• Flexible dual 2-ohm voice coils ensure optimized wiring configurations for your audio setup.
• Built for durability and performance with advanced materials and rugged construction.
• High excursion design delivers impactful, low-frequency sound in sealed or ported enclosures.
• Perfect for car audio enthusiasts looking to upgrade their sound system with premium components.

B2 Audio RAGE Series V3 8" 500 Watt RMS Dual 2-Ohm 2" Voice Coil High Excursion Subwoofer

This Listing Includes

• (1) B2 Audio RAGE Series V3 8" 500 Watt RMS Dual 2-Ohm 2" Voice Coil High Excursion Subwoofer

The B2 Audio RAGE Series V3 High Excursion Subwoofer delivers exceptional power and performance in a compact 8-inch design. With 500 Watts RMS, this subwoofer is engineered for high-performance audio systems, offering deep, punchy bass. It features dual 2-ohm 2-inch voice coils, enabling flexible wiring configurations for optimized sound quality. Designed to handle extreme conditions, the RAGE V3 boasts rugged construction and advanced materials for durability and reliability. Whether you're upgrading your car audio system or building a custom setup, this high excursion subwoofer is the perfect choice for audiophiles seeking impactful bass and premium sound performance.

Specifications

• Size: 8 inch


• RMS: 500 Watts


• Peak: 1500 Watts


• Impedance: Dual 2-Ohm

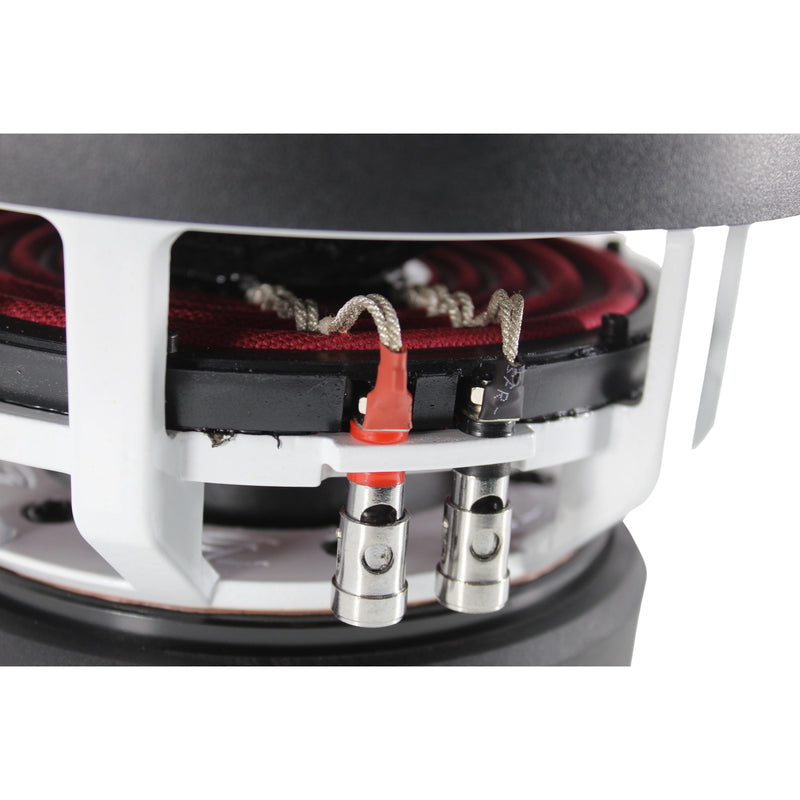

• Voice Coil: 2 inch


• Frequency Response: 10 Hz - 500 Hz


• Sensitivity: 80.5dB


• Winding Material: Copper


• Magnet Type: Ferrite


• Motor Assembly Weight: 175 Oz


• Cone Material: RNPP


• Surround Type: Tall U Shaped Foam

Thiele Small Parameters

• FS: 41 Hz


• Vas: 4.8 L


• RE(series): 3.8 Ohm


• Qms: 6.6


• Qes: 0.53


• Qts: 0.49


• CMS: 90 um/N


• BL^2/RE: 77


• MMS: 150 G


• Xmax (one way): 13 mm


• SD: 194.3 cm^2


• Efficiency: 0.07%


• Le(1 KHz): 2.2mH


• EBP: 77

Mounting/Shipping Information

• Overall Diameter: 8.66 in


• Baffle Cutout Diameter: 7.23 in


• Mounting Depth: 5.63 in


• Total Depth:  6.18 in


• Net Weight: 14.33 lbs


• Shipping Weight: 16.31 lbs


• Shipping Box: 10.25 x 10.25 x 9.45 inches

Enclosure Suggestions

• Sealed: 7.8L/0.274 Ft^3


• Qtc F3: 0.532 / 69.48 Hz


• Ported Compact: 15L / 0.53 Ft^3


• Fb/Port Area/Port Length: 42 Hz/7.98In^2/12"


• Ported: 28L / 0.99Ft^3


• Fb/Port Area/Port Length: 35 Hz/ 7.1In^2/15.8"


• Bandpass 4. Order Ration: 3:1
