- Ultra compact 4 channel Class D amplifier with built in Bluetooth 5.1 for wireless audio streaming
- Delivers 100W RMS x4 at 4 ohms, 150W RMS x4 at 2 ohms, or 300W RMS x2 bridged
- IP67 waterproof aluminum chassis designed for marine, powersports, and outdoor installs
- Selectable HPF, LPF, or full range crossover adjustable from 40 to 500Hz
- High efficiency digital design with full protection circuitry for reliable performance

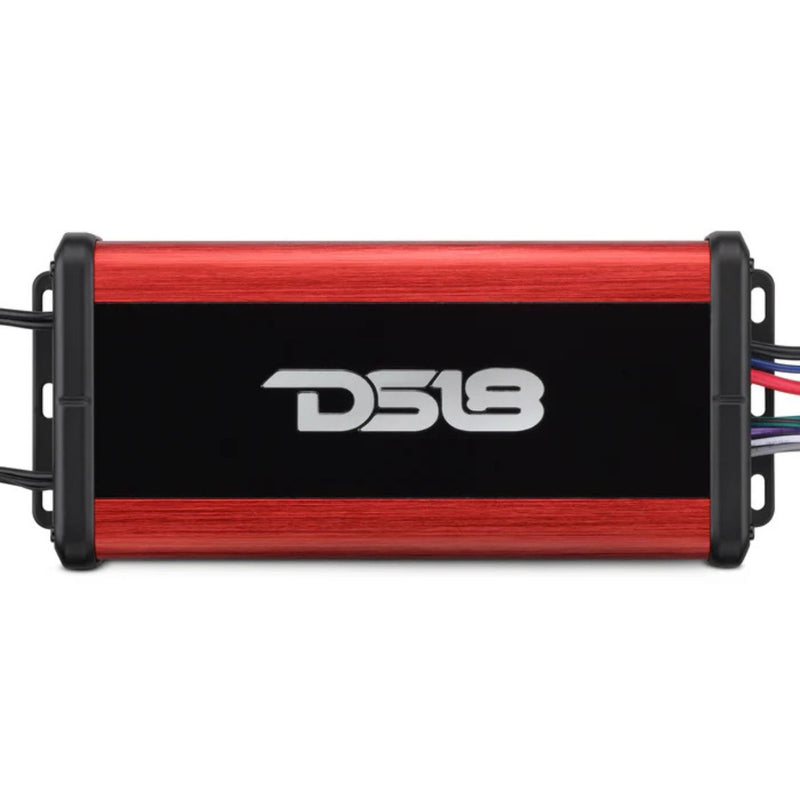

DS18 600W RMS 4-Ch Ultra-Compact Waterproof Bluetooth 5.1 Amplifier NXL-N4BT
This Listing Includes:
- (1) DS18 NXL-N4BT Ultra-Compact 4-Channel Full-Range Amplifier with Bluetooth 5.1
The DS18 NXL-N4BT is an ultra-compact, high-output 4-channel full-range amplifier designed for marine, powersports, and space-limited vehicle installations. Built with a sealed IP67 waterproof aluminum chassis, this amplifier delivers powerful, clean audio while withstanding harsh environments, moisture, dust, and vibration.
Featuring built-in Bluetooth 5.1, the NXL-N4BT allows you to stream music wirelessly directly from your smartphone or device without the need for a head unit. With support for SBC and AAC codecs, 24-bit audio depth, and a 48kHz sample rate, it delivers clean signal and reliable wireless performance.
Despite its compact size, the NXL-N4BT delivers up to 1800 watts peak power with strong full-range output. It produces 100 watts RMS per channel at 4 ohms, 150 watts RMS per channel at 2 ohms, or can be bridged to deliver 300 watts RMS per channel at 4 ohms. This makes it ideal for powering mids, highs, components, coaxials, or flexible multi-speaker setups.

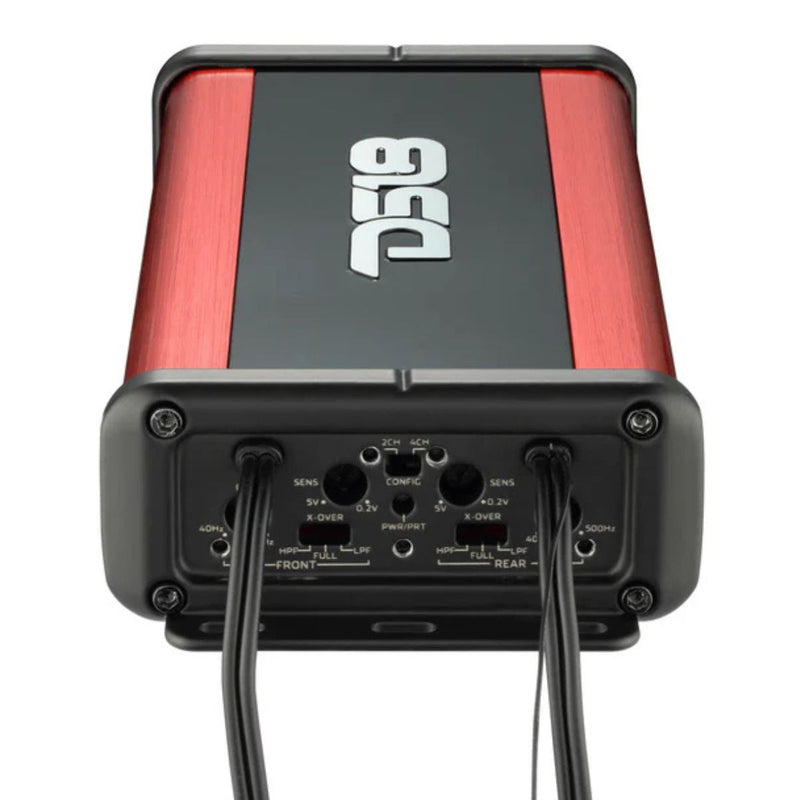

Built-in selectable crossovers allow precise system tuning with HPF, LPF, or full-range modes adjustable from 40 to 500Hz. The digital Class D design based on the IR platform ensures high efficiency, low heat, and reliable performance.
With its compact footprint measuring under 8 inches long and less than 1.6 inches tall, the NXL-N4BT installs easily under seats, inside glove boxes, side panels, or tight marine compartments. Full protection circuitry including thermal, overload, and short-circuit protection ensures safe operation in demanding conditions.
Specifications:
General:
- Manufacturer: DS18
- Model: NXL-N4BT
- Amplifier Class: Digital Class D
- Amplifier Type: Stereo Full Range
- Number of Channels: 4
- Peak Power: 1800 Watts
Power Output:
- RMS Power @ 4 Ohm: 4 x 100W
- RMS Power @ 2 Ohm: 4 x 150W
- RMS Power @ 4 Ohm Bridged: 2 x 300W
- Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridged
Audio Performance:
- Frequency Response: 20Hz – 20kHz
- Signal to Noise Ratio: 90dB
- Total Harmonic Distortion: 0.1 Percent
- Low Level Input Range: 200mV – 5V
- Selectable Crossover: HPF / LPF / Full
- Crossover Range: 40 – 500Hz
Bluetooth:
- Bluetooth Version: 5.1
- Bluetooth Name: DS18 NXL-N4BT
- Audio Protocol: A2DP 1.3.1
- Audio Codecs: SBC / AAC
- Audio Depth: 24-bit
- Sample Rate: 48kHz
Electrical & Protection:
- Power Input: 8 Gauge OFC
- Fuse Rating: 25A
- LED Indicators: Power / Protection
- Thermal Protection: Yes
- Overload Protection: Yes
Construction:
- Chassis: Fully Aluminum
- Waterproof Rating: IP67
Dimensions & Weight:
- Overall Length: 7.87 inches
- Overall Width: 3.67 inches
- Overall Height: 1.56 inches
- Heatsink Length: 7.16 inches
- Unit Weight: 2.8 lbs
