- TITANIUM VOICE COIL CLARITY: Features a 1” titanium voice coil with titanium diaphragm for ultra-clean, high-volume treble that cuts through any mix with strong detail and control.
- HIGH POWER HANDLING OUTPUT: Rated at 60W AES, 120W program, and 240W peak for loud, consistent high-frequency performance in SPL and everyday systems.
- COMPACT 3” SUPER BULLET DESIGN: 3” super bullet tweeter built for strong projection with 100dB sensitivity and wide 650Hz to 20kHz frequency response.
- NEODYMIUM MAGNET MOTOR: Lightweight neodymium magnet (38x14mm) delivers high magnetic force with reduced weight, keeping the tweeter efficient and easy to mount.
- SLIM FIT FOR CUSTOM INSTALLS: Only 1.46” mounting depth with 2.9” overall diameter fits tight locations like dash pods, A-pillars, and custom panels, recommended 2kHz high-pass crossover.

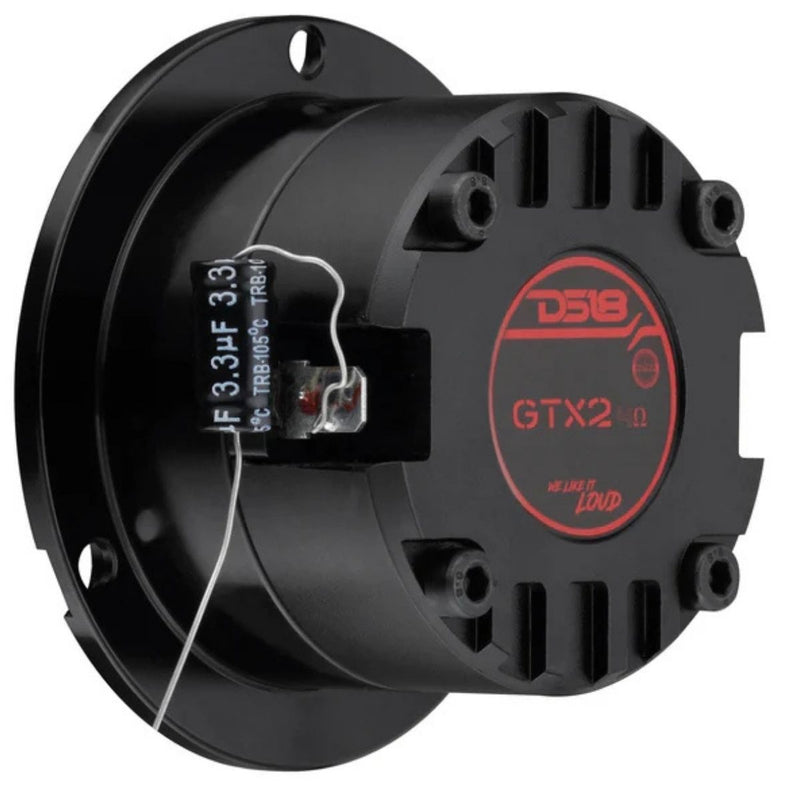

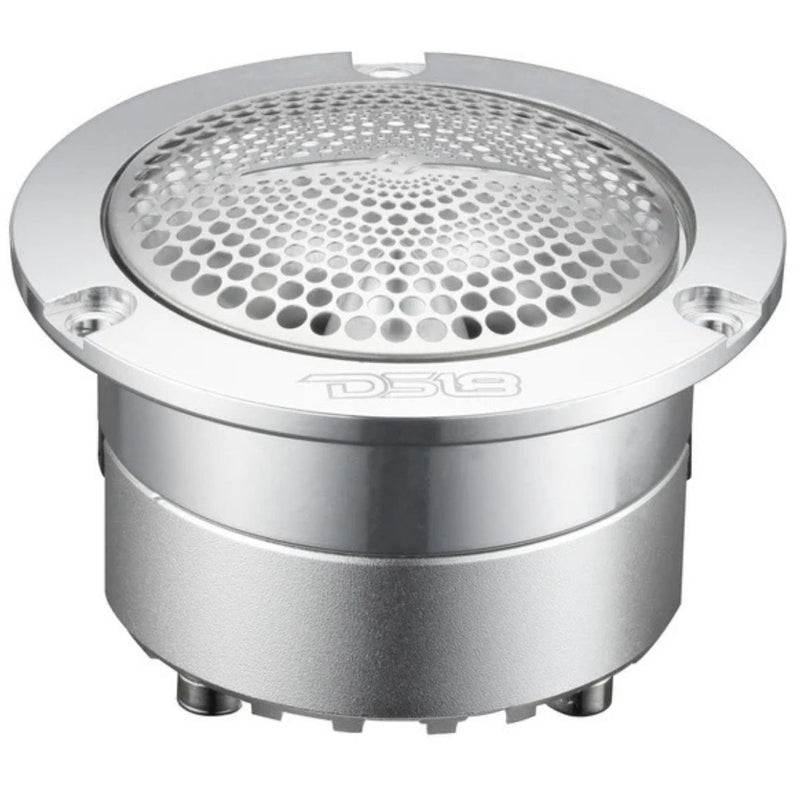

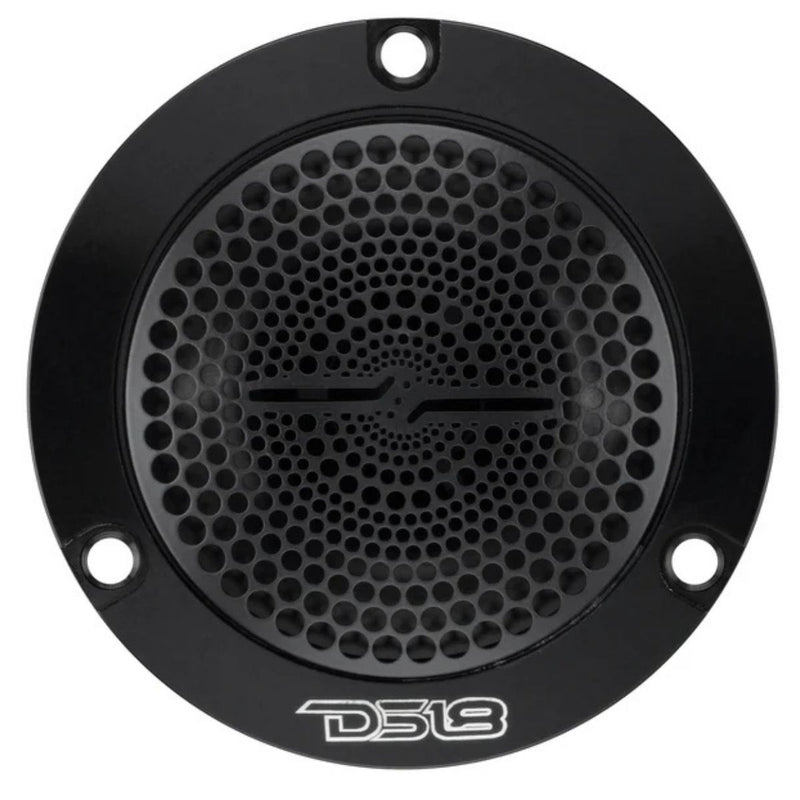

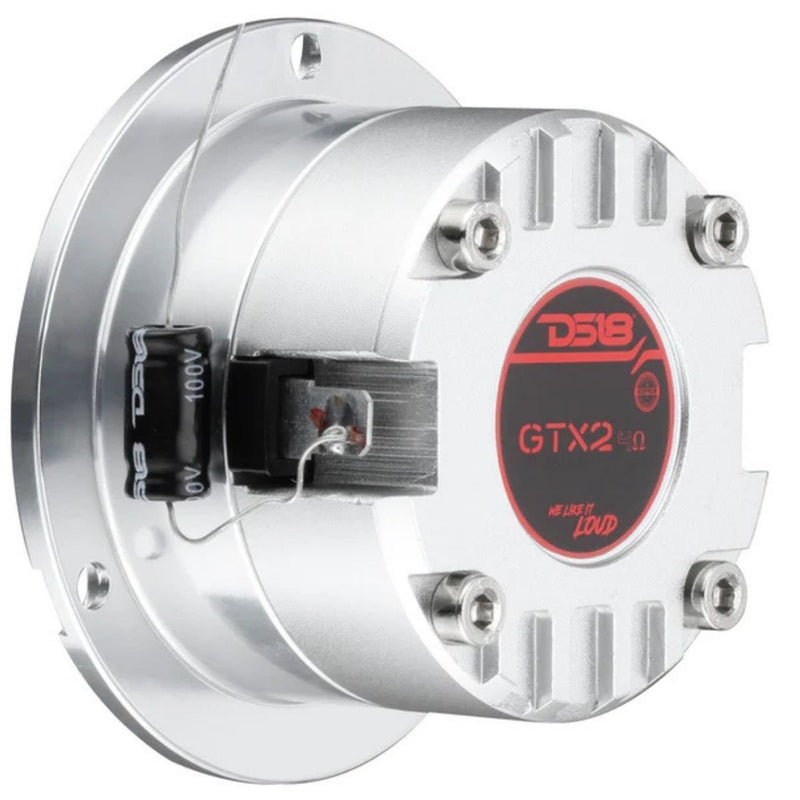

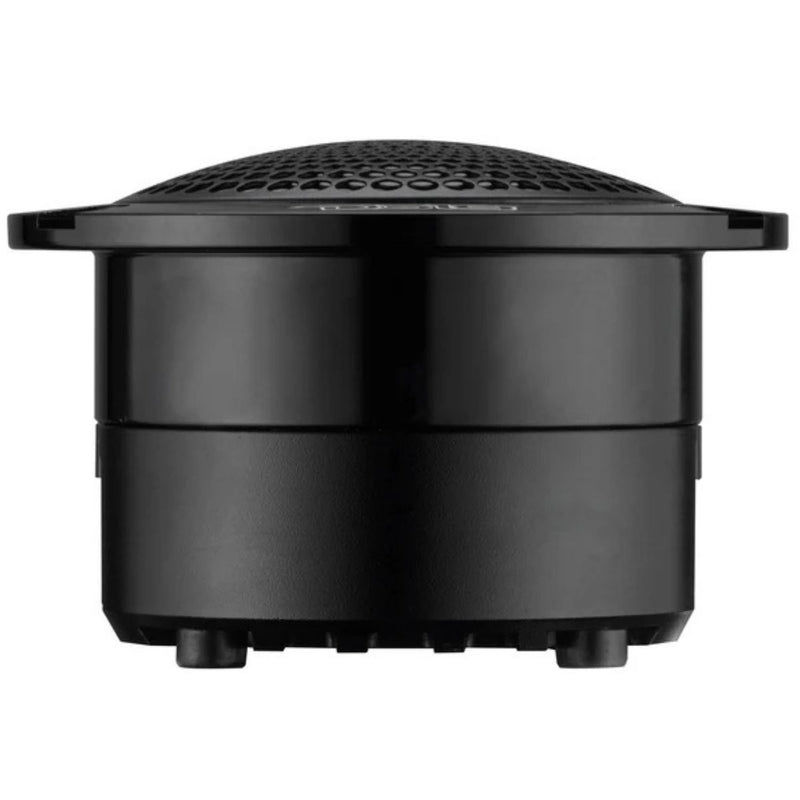

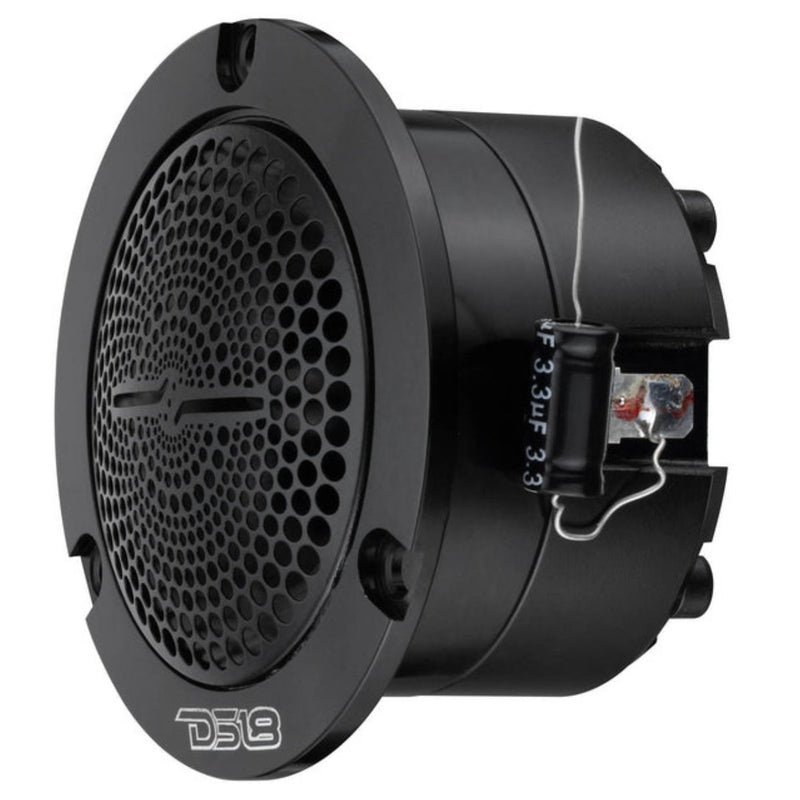

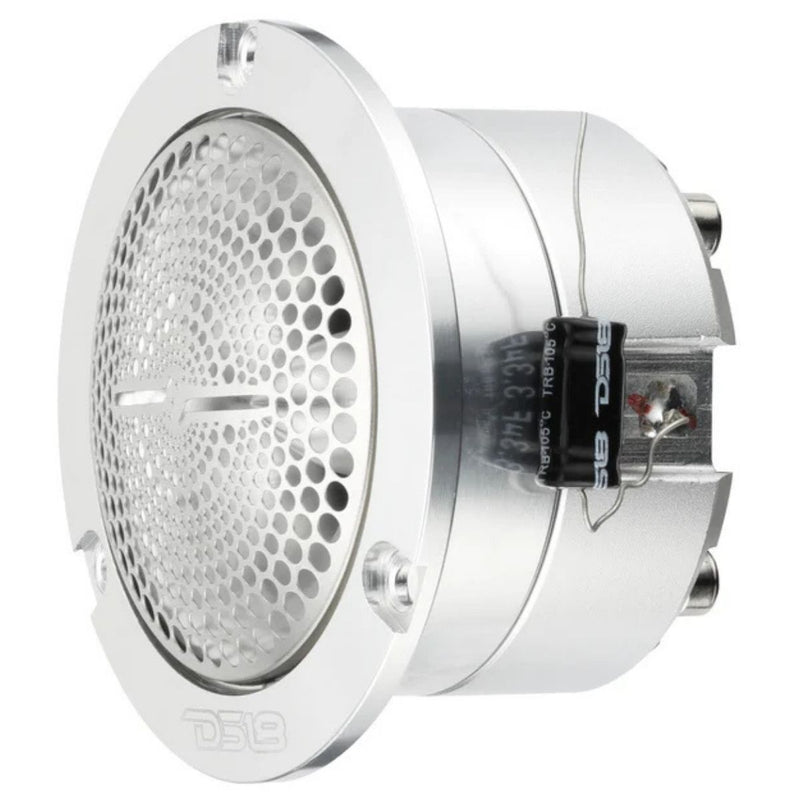

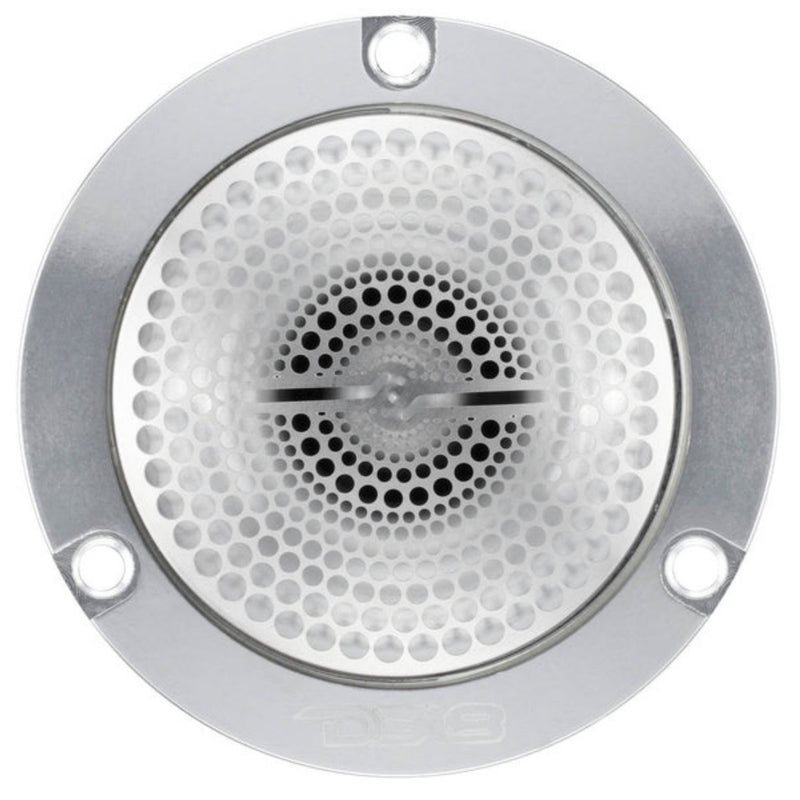

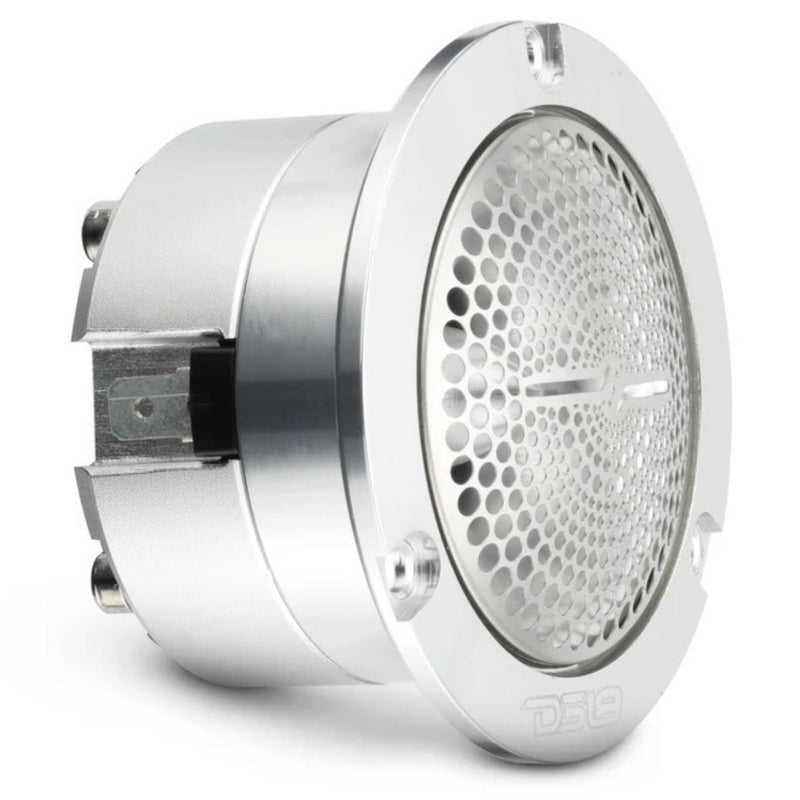

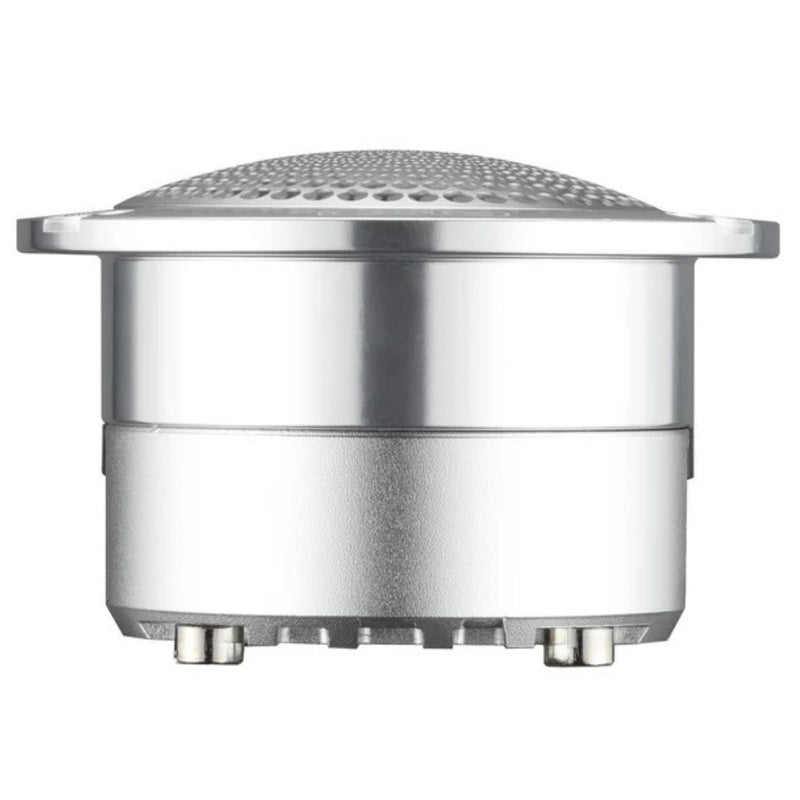

3" 120 Watt RMS 4-Ohm Super Bullet Tweeter w/ Titanium Voice Coil DS18 GTX2 Black or Silver
This Listing Includes:
- (1) 3" Super Bullet Tweeter
The DS18 GTX2 is a compact 3 inch super bullet tweeter built to deliver ultra-clean, high-output treble in a slim, easy-to-install design. With a 1 inch titanium voice coil, titanium diaphragm, and 100dB sensitivity, this tweeter is made to cut through any mix with sharp, controlled highs.
Power handling is rated at 60W AES, 120W program, and 240W peak, making it a strong choice for high-volume systems that need aggressive high-frequency projection. The lightweight neodymium motor (38 x 14mm magnet size) delivers strong magnetic force without adding bulk, keeping this tweeter efficient and compact for custom builds.
The GTX2 plays from 650Hz to 20kHz for wide mid-high and high-frequency coverage, and a 2kHz high-pass crossover is recommended for protection and best performance. With only 1.46 inches of mounting depth and a 2.9 inch overall diameter, it fits easily into dash pods, A-pillars, custom panels, and SPL builds. Aluminum body construction with a black finish keeps it clean and durable.
Specifications:
- Nominal Diameter: 3" (76mm)
- Nominal Impedance: 4 Ohms
- AES Power Handling: 60W
- Program Power Handling: 120W
- Peak Power Handling: 240W
- Sensitivity (1W/1M): 100dB
- Frequency Response: 650Hz to 20kHz
- Recommended Hi Pass Crossover: 2kHz
- Sold As: Single
Motor / Materials:
- Voice Coil Diameter: 1" (25.4mm)
- Voice Coil Former Material: KSV
- Winding Material: CCAW
- Diaphragm Material: Titanium
- Magnet Material: Neodymium
- Magnet Size: 38 x 14mm
- Body Material: Aluminum
- Body Color / Finish: Black or Silver

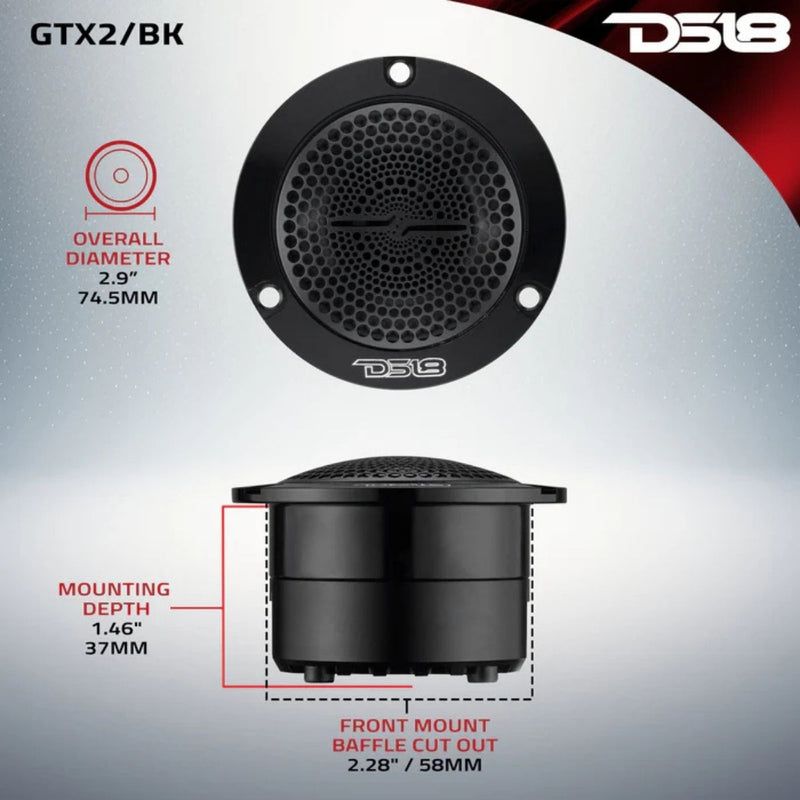

Dimensions:
- Overall Diameter: 2.9" (74.5mm)
- Overall Depth: 1.8" (48mm)
- Front Mount Baffle Cutout: 2.28" (58mm)
- Mounting Depth: 1.46" (37mm)
Small size, big scream, the DS18 GTX2 cuts through everything.
